10422500+10431000+10432000+194, Epic Contact Connector Set, 4 Way, 10A, Female to Male, H-A, 250 V

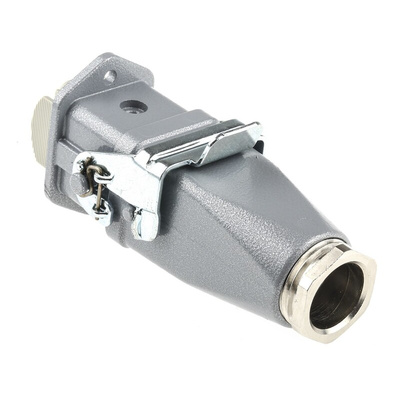

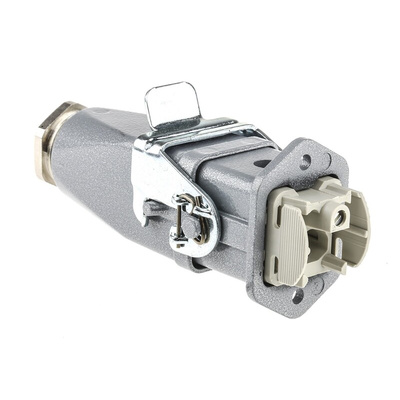

LAPP Heavy Duty Power Connector, Hooded, 4 Contacts - EPIC Series - 10422500+10431000+10432000+194

Choose this heavy duty power connector from LAPP for safe and stable power transmission to your panel. The unit's highly conductive copper alloy contacts are on hand to ensure reliable signal delivery. For a performance boost, they come plated in silver that's resistant to corrosion. Hard impacts pose no challenge for this connector thanks to its tough metal alloy body. With a wide operating temperature range between -40°C and +125°C, it can stand the test of demanding environments.

Features & Benefits

• Integrated locknut for tight cable connection

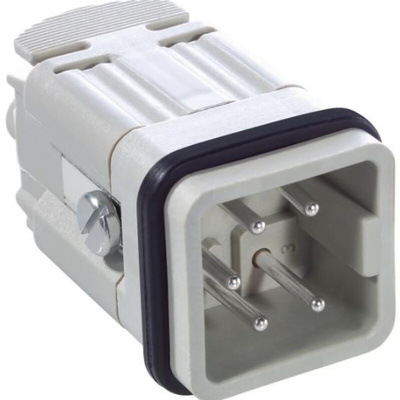

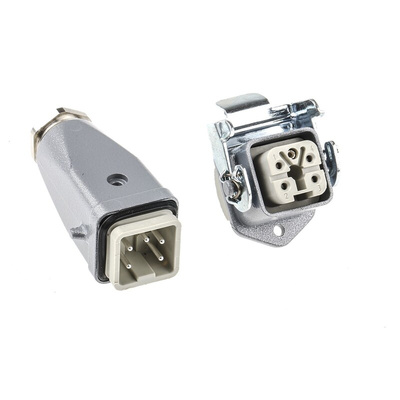

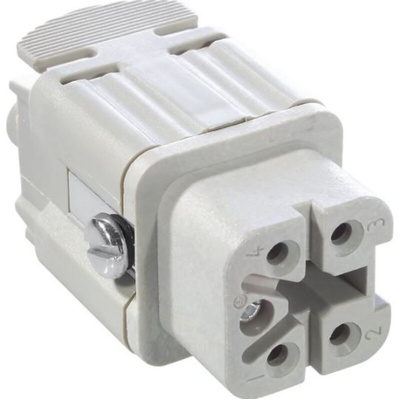

• Plug and socket inserts can be interchanged for flexible assembly
• Separate earth connections to limit the risk of damage from electrical faults

Applications

• Food production and packaging
• Automotive engineering
• Energy industry

What type of cable can I use with this connector?

For a well-rounded setup, you can attach circular cables sized up to 2.5mm² to this connector.

Approvals

UL listed; CSA certified; SEV

Metal Plug & Socket Kits

Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)

Dimensions: 3 and 4-way

H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.

Dimensions: 10 and 16 way

Cable plug, side entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry

Dimensions: 32//48 way - gland size PG29

Cable plug, side entry
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket

EPIC H-A Connector Kit Data Sheet

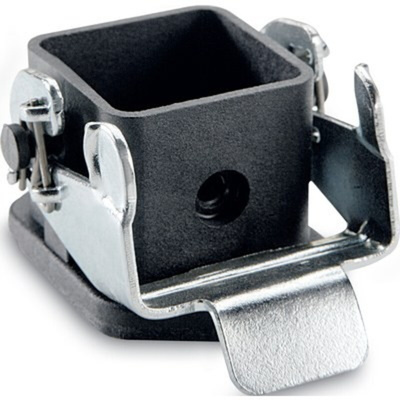

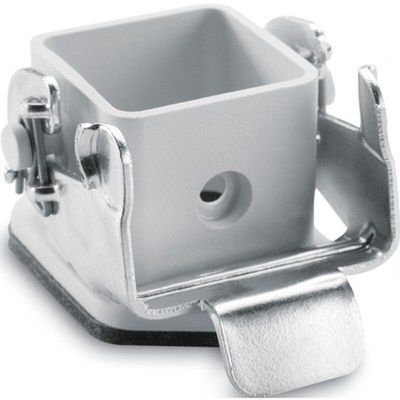

EPIC DA-VINCI H-A Anbaugehäuse / Panel mount base / Embase encastrée & Sockelgehäuse / Surface mount base / Embase en saillie

EPIC DA-VINCI H-A Tüllengehäuse / Hood / Capot

EPIC DA-VINCI H-A Gehäuse / Housing / Boitiers - General Specifications

EPIC Rechtecksteckverbinder / Rectangular Connectors / Connectuer Rectangulaire - General Specifications

Datasheet - 10432000

Datasheet - 10422500

Instruction Sheet - 10422500+10431000+10432000+194
