10423500+10431000+10432000+194, Epic Contact Panel Kit, 4 Way, 10A, Female to Male, H-A, 250 V

LAPP Heavy-Duty Power Connector, Female to Male, M25 Thread - EPIC Series - 10423500+10431000+10432000+194

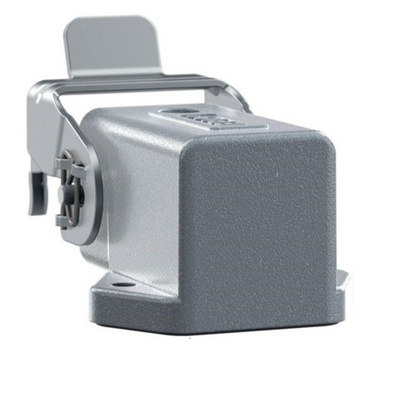

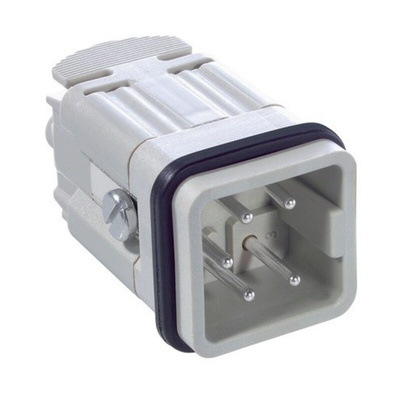

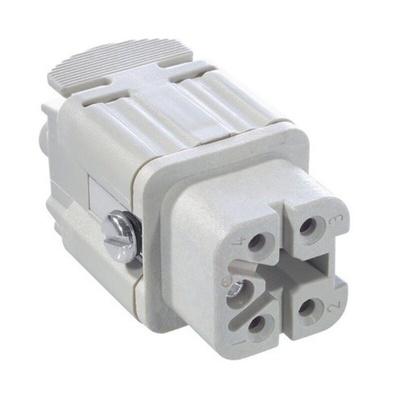

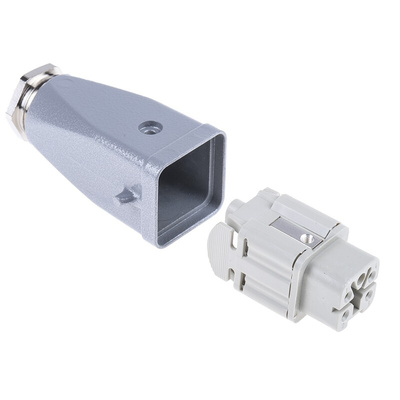

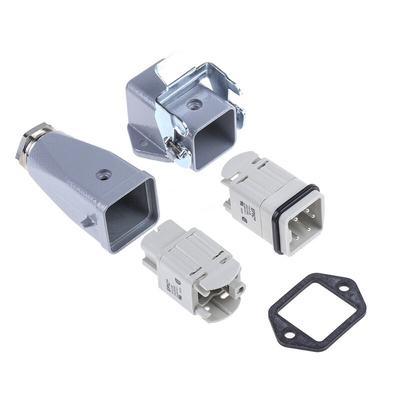

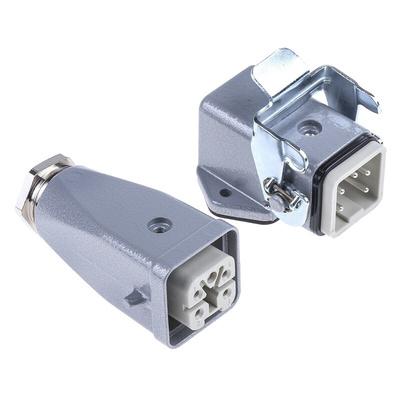

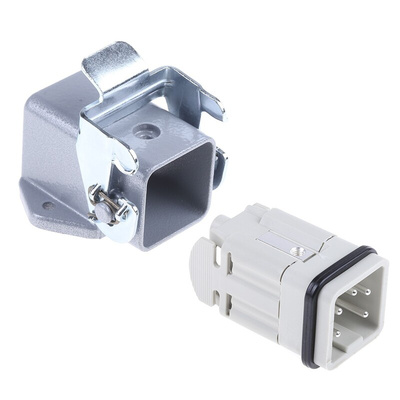

Opt for this plug and socket set from LAPP's EPIC series to achieve connections that can stand up to the rigours of industrial use. The top-entry cable-mounting hood clips securely into a panel-mounted base with a locking lever, creating a firm connection. Plastic inserts provide excellent electrical insulation. Use this set to make convenient female-to-male connections in your equipment.

Features & Benefits

• Screw terminals let you quickly and easily connect wires sized up to 2.5mm²
• Silver-plated copper-alloy contacts resist corrosion to ensure reliable conductivity
• Cable-mounting hood uses a compression gland to seal cables to IP54 rating, protecting them from dust and water sprays

Applications

• Electronic laboratories
• Machine building
• Measurement and control cabinets

What's an IP rating?

An IP rating tells you how well an electrical enclosure stands up to dust (the first digit) and moisture (the second digit). An IP54 rating indicates mid-level protection from moisture and contamination.

Approvals

UL listed; CSA certified; SEV

Metal Plug & Socket Kits

Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)

Dimensions: 3 and 4-way

H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.

Dimensions: 10 and 16 way

Cable plug, side entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry

Dimensions: 32//48 way - gland size PG29

Cable plug, side entry
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket

EPIC H-A Connector Kit Data Sheet

EPIC DA-VINCI H-A Anbaugehäuse / Panel mount base / Embase encastrée & Sockelgehäuse / Surface mount base / Embase en saillie

EPIC DA-VINCI H-A Tüllengehäuse / Hood / Capot

EPIC DA-VINCI H-A Gehäuse / Housing / Boitiers - General Specifications

EPIC Rechtecksteckverbinder / Rectangular Connectors / Connectuer Rectangulaire - General Specifications

Datasheet - EPIC H-A 4

Datasheet - EPIC H-A 3 AGS
