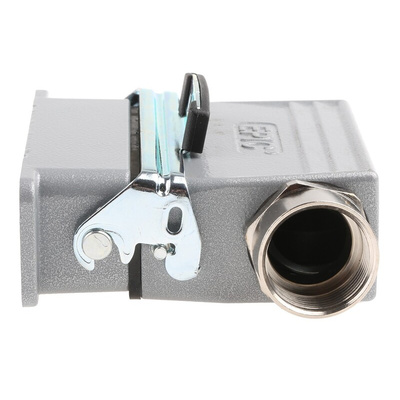

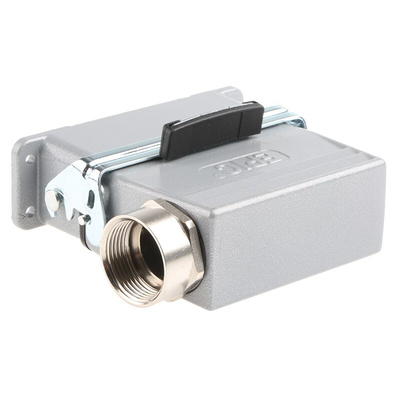

10462000+10530000+10531000+195, Epic Contact Connector Set, 16 Way, 10A, Female to Male, H-A, 440 V

H-A Complete Metric 16 Way Panel Mount Kit

This H-A series connector kit has everything you need for a complete PCB power connection solution. The Kit features a top entry hood that connects to the locking PCB mounting base for secure mating. With a robust metal construction, this H-A series connector kit is extremely durable.

This Kit Includes:

• A Top Entry Connector Hood
• A Connector Base with Locking Lever
• A 16 Way Male Connector Insert
• A 16 Way Female Connector Insert
• An M25 Gland

Features and Benefits:

• IP65
• Temperature range: -40°C to +125°C
• Insulation group: VDE 0110 group B

Approvals

UL listed; CSA certified; SEV

Metal Plug & Socket Kits

Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)

Dimensions: 3 and 4-way

H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.

Dimensions: 10 and 16 way

Cable plug, side entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry

Dimensions: 32//48 way - gland size PG29

Cable plug, side entry
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket
