10431000+10432000+19424500+19426500+71201200, Epic Contact Connector Set, 4 Way, 10A, Female to Male, H-A, 250 V

LAPP Female to Male 4-Way Connector, 10A Current Rating, 250V Voltage Rating - Epic Contact Series - 10431000+10432000+19424500+19426500+71201200

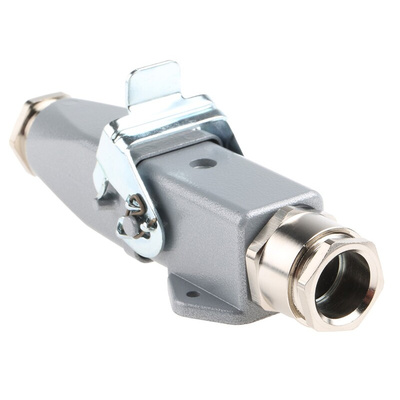

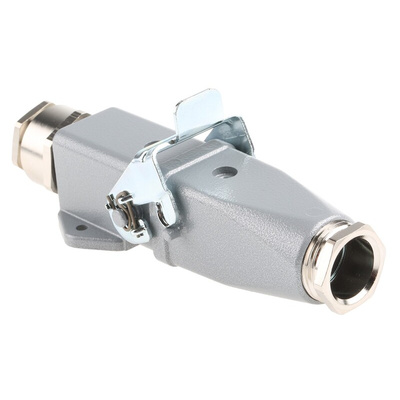

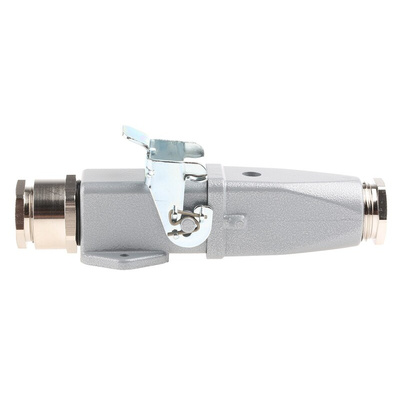

Need a safe and reliable connector for use with high-voltage applications? This surface-mounting kit from LAPP includes a base, gland and male and female inserts to help you assemble a system with a robust connection. Screw terminals with wire protection leaves enable you to make quick and secure connections with cables sized up to 2.5mm². A separate earth connection through all inserts ensures maximum safety.

Features & Benefits

• Interchangeable plug and socket inserts provide flexibility
• Hard silver-plated copper alloy contacts ensure high conductivity and resistance to corrosion

Applications

• Oil and gas industry
• Robotics
• Food production

Why use a heavy-duty power connector for high voltages?

The high-quality insulation materials in heavy-duty power connectors make them suitable for use with high voltages, as they reduce the risk of injury to users or damage to equipment.

Approvals

UL listed; CSA certified; SEV

Metal Plug & Socket Kits

Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)

Dimensions: 3 and 4-way

H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.

Dimensions: 10 and 16 way

Cable plug, side entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry

Dimensions: 32//48 way - gland size PG29

Cable plug, side entry
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket

H-A Surface Mount Kits

EPIC DA-VINCI H-A Anbaugehäuse / Panel mount base / Embase encastrée & Sockelgehäuse / Surface mount base / Embase en saillie

EPIC DA-VINCI H-A Tüllengehäuse / Hood / Capot

EPIC DA-VINCI H-A Gehäuse / Housing / Boitiers - General Specifications

EPIC Rechtecksteckverbinder / Rectangular Connectors / Connectuer Rectangulaire - General Specifications
