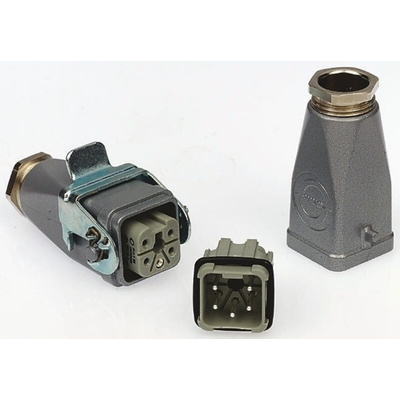

10420000+10421000+19426500+194, Epic Contact H-A Connector Set, Female to Male, 3 Way, 10.0A, 250.0 V

H-A Complete M20 Metal Shell Inline Coupler Kits

From Contact Connectors this fully assembled power connector is safe, reliable ideal for high voltage applications.

Approvals

UL listed; CSA certified; SEV

Metal Plug & Socket Kits

Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)

Dimensions: 3 and 4-way

H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.

Dimensions: 10 and 16 way

Cable plug, side entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry

Dimensions: 32//48 way - gland size PG29

Cable plug, side entry
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket

EPIC DA-VINCI H-A Kupplungsgehäuse / Cable coupler hood / Capot prolongateur

EPIC DA-VINCI H-A Tüllengehäuse / Hood / Capot

EPIC DA-VINCI H-A Gehäuse / Housing / Boitiers - General Specifications

EPIC Rechtecksteckverbinder / Rectangular Connectors / Connectuer Rectangulaire - General Specifications
