EOS Switching Power Supply, LFVLT80-4000, ±5 V dc, ±12 V dc, 3 A, 10 A, 800 mA, 80W, Quad Output, 90 → 264V ac, Источник питания

EOS Embedded Switch Mode Power Supply

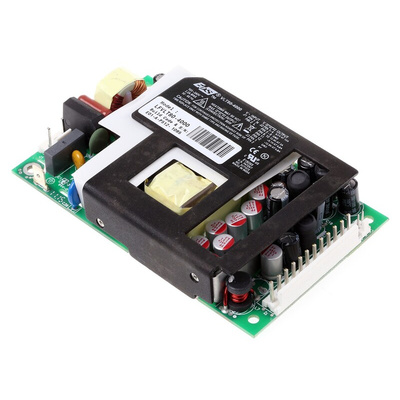

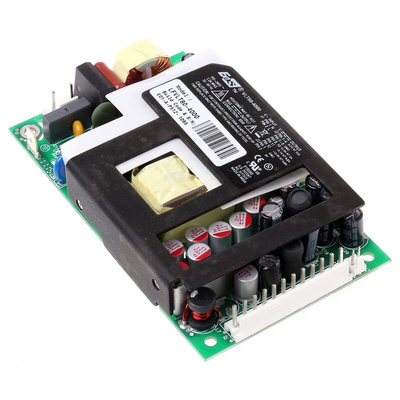

The EOS VLT series 80W four outputs AC to DC embedded switch mode power supply has an output current of 10A at 5VDC, 3A at 12VDC, 0.8A at -5VDC and 0.8A at -12VDC. It has a universal input supply voltage rating ranging from 90VAC to 265VAC.
Note:
Connectors are not supplied
VLT130 current rating with a fan (180LFM). Power rating with forced airflow requires a user-supplied 15CFM fan

Features and Benefits

Overvoltage
Power limit
Short circuit protection
Dual channel output
High reliability MTBF greater than 100,000 hours
Operating temperature ranges between -20°C and 50°C

Applications

Data networking
Industrial
Multimedia

Certifications

IEC950
EN60950
UL1950
EMI/RFI to CISPR 55011//14-B. FCC 15-B
Power factor correction to EN61000-3-2 (VLT80 and VLT130)
VDE approved

VLT80 Series 80W single and quad output AC/DC Power Supplies Data Sheet
