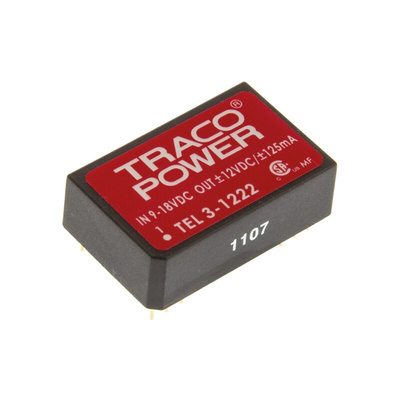

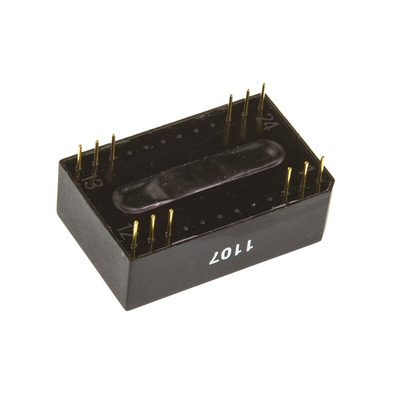

TEL 3-1222, TRACOPOWER TEL 3 DC-DC Converter, ±12V dc/ ±125mA Output, 9 → 18 V dc Input, 3W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 1.5kV DC Isolation, 80% Efficiency - TEL 3 Series - TEL 3-1222

When the job calls for an efficient power and conversion solution, look to this DC-DC converter from Traco Power. It's a 3W model that takes any voltage from a broad range of 9 to 18V DC and steps it down to a carefully controlled ±12V DC. That makes it a great shout for use with your sensitive battery-powered kit. The unit's impressive 80% efficiency means you can trust it produces little heat as a waste product and is safe to use across a wide operating temperature range of -40°C to +85°C. As this is a dual-output type, you can use it to run up to two bits of connected equipment at a time.

Features & Benefits

• Non-conductive plastic casing makes the device touch-safe, meaning there's no shock risk
• Flame-retardant (UL 94-V0) epoxy potting helps to stop the spread of fire
• Isolated to 1.5kV DC, so effective at shielding against electrical spikes
• Mean time between failures of over 1 million hours makes it a long-lasting pick

Applications

• Consumer electronics
• Process and control devices
• Server rooms

Does this converter protect against current faults?

Yes. It comes with indefinite short-circuit protection, so you're always covered when it comes to common current issues.

Approvals

UL Recognised; EN60950; UL1950
