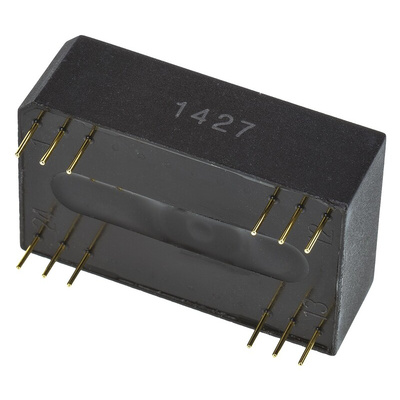

TEL 3-2423, TRACOPOWER TEL 3 DC-DC Converter, ±15V dc/ ±100mA Output, 18 → 36 V dc Input, 3W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 1500V DC Isolation, 81% Efficiency - TEL 3 Series - TEL 3-2423

Keep it steady as you go with this DC-DC converter from Traco Power. It's an essential bit of kit that makes sure your downstream devices have a consistent voltage. Inputs anywhere in the range from 18 to 36V DC are converted to a stable output voltage of ±15V DC. The unit has a load regulation of ±1%, as well as ripple and noise below 60mV pk-pk, to keep your output voltage at the desired level.

Features & Benefits

• Through-hole mounting makes a strong connection with the board
• Housed in an industry-standard DIP-24 unit for wide compatibility
• Broad operating temperature range between -40°C and +85°C makes it suitable for use in harsh industrial environments
• Compact dimensions of 31.8 (L) x 20.3 (W) x 10.2mm (D) for setups where space is at a premium

Applications

• Consumer electronics
• Industrial automation
• Food and beverage production

Does this DC-DC converter provide isolation?

Yes, this component provides 1500V DC isolation. This keeps your downstream electrical devices safe from damage caused by power surges on the supply side.

Approvals

UL Recognised; EN60950; UL1950
