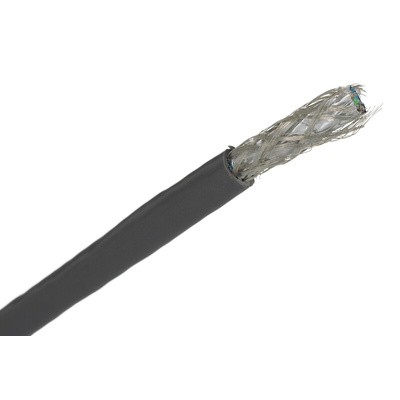

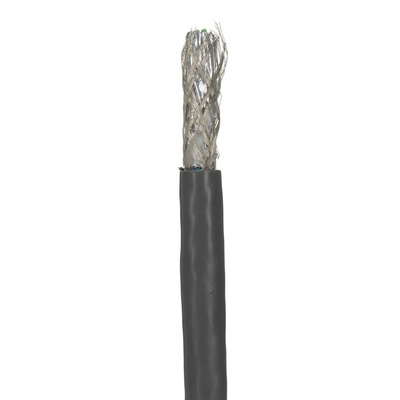

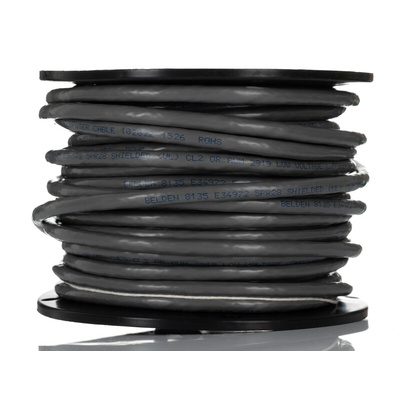

8135 060100, Belden Twisted Pair Data Cable, 5 Pairs, 0.07 mm², 10 Cores, 28 AWG, Screened, 30m, Chrome Sheath, Кабель

Belden Data Cable, 10 Cores, Datalene Insulated - 8135 060100

Keep your data communications crystal clear over long distances with this data cable from Belden. Low capacitance helps the signal travel the full 30m length without deterioration. Tinned copper conductors are laid in five twisted pairs to minimise crosstalk and maintain the purity of your signals. Datalene high-density foamed insulation performs well across a wide temperature range of -30°C to +80°C and has good crush resistance, making this an ideal option for installation in tough conditions.

Features & Benefits

• Beldfoil and tinned copper braid shielding protects the conductors from EMI
• Chrome-coloured PVC sheath for an unobtrusive appearance

Applications

• Process control
• Data processing
• Military vehicles

What does shielding do?

Shielding keeps EMI from reaching your conductors, meaning that signals from outside don't mess with the one that you're transmitting through the cable. This belt-and-braces cable has two layers of shielding.

Standards

UL2919; NEC CM

Datasheet

Cable Selection Guide
