RSF84Y100R, Sensata / Cynergy3 RSF80 Series External Polypropylene Float Switch, Float, 1m Cable, SPNO, 240V ac Max, 120V dc Max

Cynergy3 Horizontal Float Switches

Cynergy3 offers wide range of horizontal switches which are WRAS approved and have low-cost compact design. These horizontal float switches consist of a reed switch and a pivoted actuator magnet and can be used for N/O or N/C operation. The switch action can be reversed by mounting the float switch with the float able to move upwards away from the body instead of downwards.

WRAS approval explained

WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have an appropriate quality and standard.

What materials can you choose from?

• Nylon
• Polypropylene
• Polypropylene Sulfide (PPS)

Features and Benefits

• Operating temperature: -10 °C to +120 °C
• N/O or N/C Switch output
• Switch action may be reversed by rotating the switch through 180º
• Choice of gasket materials: Silicone, Nitrile, Viton or combination of Silicone & Nitrile
• Flying Lead
• M12 plug connection
• Internal & external fitting inside a tank
• UL recognised

Typical Applications

These Cynergy3 Horizontal Switches are most likely to be used in vending machines, commercial washing machines and evaporator units.

Note

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

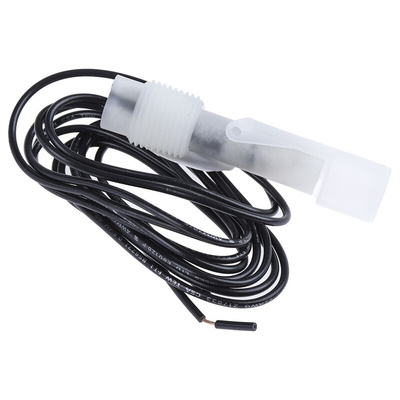

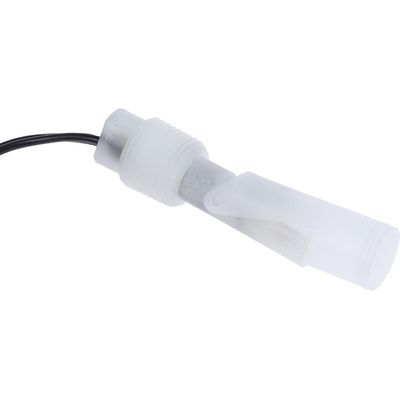

Sensata Cynergy3 Horizontal Float Switch, NO/NC, 600mA - RSF80 Series - RSF84Y100R

This Sensata Cynergy3 horizontal float switch is a versatile component for liquid-level regulation in high-alarm operations where overfill shutoffs are to be avoided. Its NO/NC (normally open/normally closed) output allows for flexibility in the layout of your circuitry. You can also reverse the switch action by simply rotating it through 180°. For maximum durability and resistance to corrosion, it's made of a robust polypropylene material. You'll find switches like this commonly used in diesel generators, hydraulic oil and gearbox oil levels.

Features and Benefits

• Gasket made of silicone and Viton for resistance to abrasion and corrosion
• Broad operating temperature range of -20°C to +100°C for use in a range of demanding environments
• Cable length of 1m for ease of connection
• PVC (polyvinyl chloride) cable sheath for effective electrical insulation and durability

How do I mount this float switch?

This unit can be horizontally mounted and is designed to be fitted through the wall of a tank via a 1/2 NPT (national pipe thread) thread. This makes the switch a convenient choice for situations where access to the inside of the tank is impractical.

RSF80 Series External Float Switch Datasheet

Selection Guide - Level Sensors & Switches

Manual - Installation Notes
