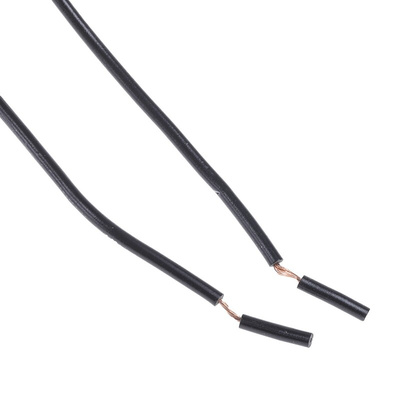

RSF86Y100R, Sensata / Cynergy3 RSF80 Series Horizontal Polyphenylene Sulfide Float Switch, Float, 1m Cable, NO/NC, 240V ac Max,

Cynergy3 Horizontal Float Switches

Cynergy3 offers wide range of horizontal switches which are WRAS approved and have low-cost compact design. These horizontal float switches consist of a reed switch and a pivoted actuator magnet and can be used for N/O or N/C operation. The switch action can be reversed by mounting the float switch with the float able to move upwards away from the body instead of downwards.

WRAS approval explained

WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have an appropriate quality and standard.

What materials can you choose from?

• Nylon
• Polypropylene
• Polypropylene Sulfide (PPS)

Features and Benefits

• Operating temperature: -10 °C to +120 °C
• N/O or N/C Switch output
• Switch action may be reversed by rotating the switch through 180º
• Choice of gasket materials: Silicone, Nitrile, Viton or combination of Silicone & Nitrile
• Flying Lead
• M12 plug connection
• Internal & external fitting inside a tank
• UL recognised

Typical Applications

These Cynergy3 Horizontal Switches are most likely to be used in vending machines, commercial washing machines and evaporator units.

Note

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

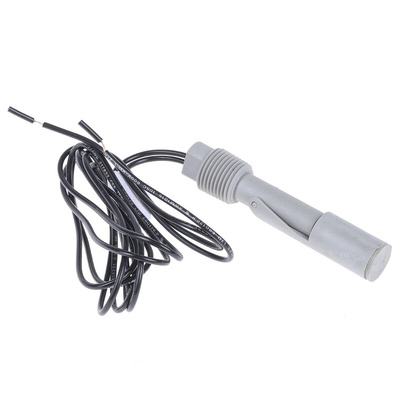

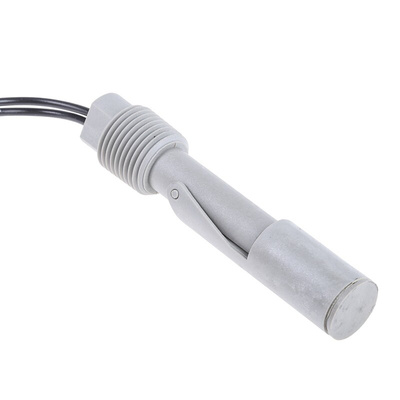

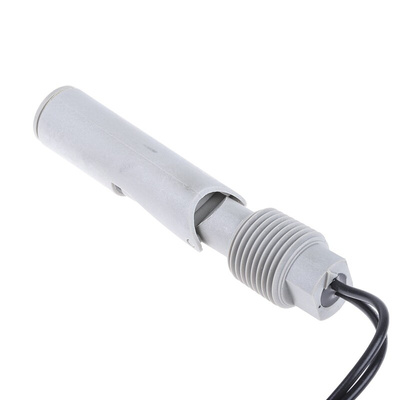

Sensata Cynergy3 Horizontal Float Switch, Polyphenylene Sulfide, NO/NC - RSF80 Series - RSF86Y100R

Need a float switch that's simple to install? Choose this option from Sensata Cynergy3 to monitor fluid levels. It's designed to be mounted through the wall of a tank using a 1/2-in NPT (National Pipe Thread) thread, without the need to access the inside of the tank. Thanks to polyphenylene sulphide construction with a Viton gasket, it's suitable for use with most organic and inorganic chemicals and oils. This makes it a good choice for use with diesel generators, hydraulic oil and gearbox oil levels. For added versatility, the switch can be set to the normally open (NO) or normally closed (NC) position by a simple 180º rotation.

Features and Benefits

• Suitable for horizontal internal or external mounting for versatile installation
• Broad operating temperature range of -10°C to +120°C for use in a range of demanding environments
• Safe for use in food and vending applications

What types of loads can this switch handle?

The switch is designed for signal switching and for use with suppressed coil miniature relays and other resistive loads. It's not suitable for inductive or inrush loads.
