RS PRO Type K Thermocouple 150mm Length, 6mm Diameter → +1100°C, Термопара

RS PRO Type K Thermocouple 150 mm Length, 6 mm Diameter → +1100°C

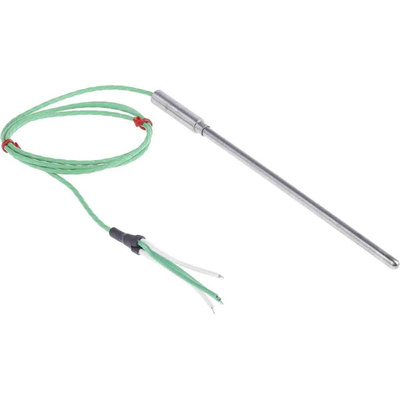

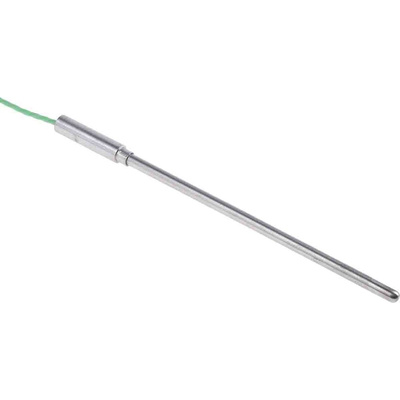

This Type K thermocouple from the RS PRO range features a flexible, mineral-insulated wire and stainless steel sheath. The probe can be bent and formed and its mineral insulation makes it suited to high pressure, vacuum and vibration applications.

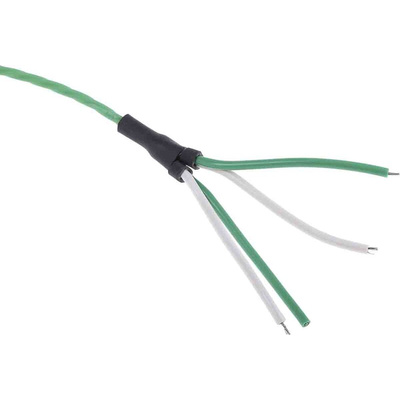

The mineral insulation of this thermocouple facilitates rapid heat transfer between the conductor and the shaft, as well as protecting the thermocouple wire from environmental damage, corrosion and electrical interference. The duplex probe has two independent measuring junctions allowing one probe to be connected to two different measurement or control devices. Alternately, you can use the second sensor as a backup, meaning the probe doesn't have to be replaced immediately if one sensor fails.

The flexibility offered by these thermocouples, as well as their maximum operating temperature of +1100°C, makes them popular for use in power stations, heat exchanges and laboratory applications.

Features and Benefits

• Type K thermocouple with a stainless-steel probe
• Probe diameter of 6 mm
• Probe length of 150 mm
• Maximum operating temperature of +1100°C
• Cable length of 1 m
• Conforms to IEC 584 standards for thermocouple manufacturing tolerances

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
