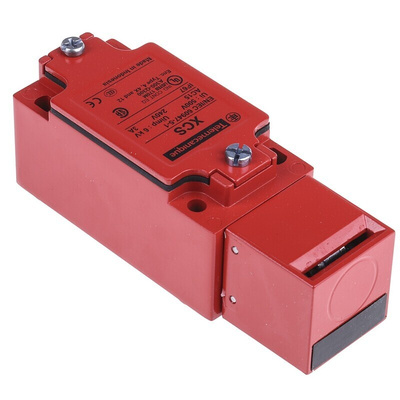

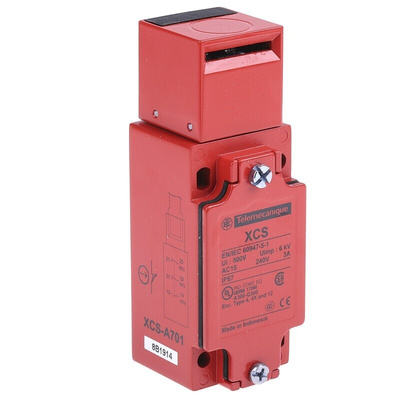

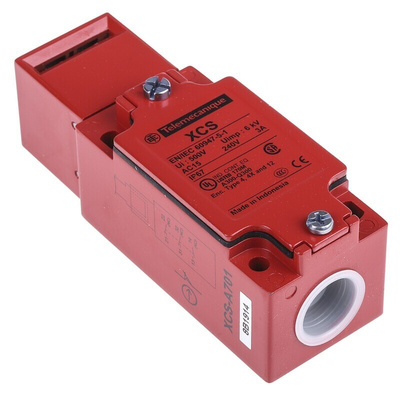

Telemecanique Sensors Rotating Hinge Switch
The Telemecanique sensors XCSA series interlock switch has 2NC/1NO switch configuration. It has a maximum voltage of 240VAC/250VDC and a maximum current of 6A. The housing material is zamak and it is available in a screw connection type.
Features and Benefits
3 positive opening contacts as standard (on guard opening)
Key operated lock enables positive locking of the guard
Optional version with orange LED to indicate guard open/closed
Heavy duty metal DIN style
Turret heads can be rotated through 360° in 90 steps
8 actuator entries and 1 tapped entry
20N minimum operating force for positive opening
Productivity is increased due to the third contact dedicated to diagnostics
Operating temperature ranges between -25°C and 70°C
Certifications
IP67 rated
EN1088
EN60204
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/ISO 12100
EN/IEC 60204-1
EN 1088/ISO 14119
UL 508
