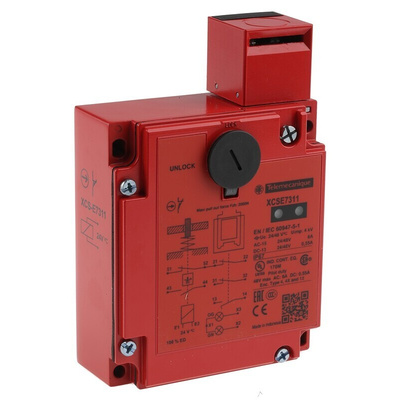

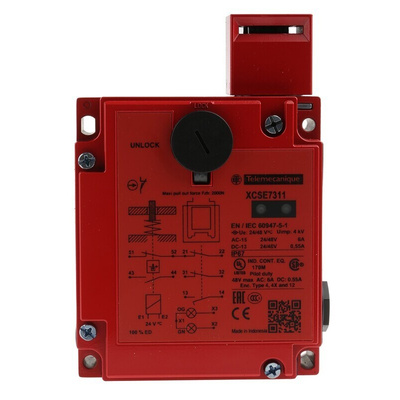

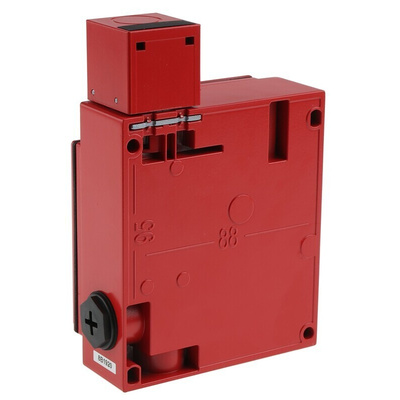

XCSE7311, Telemecanique Sensors XCS-E Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc, Actuator Included

Telemecanique Sensors XCS E Solenoid Interlock Switch.

From Telemecanique Sensors this is the XCS E series of safety solenoid interlock switches providing you with the solution when running machinery and a guard or door stays closed. Interlock switches protect machine operators by stopping the equipment when the door or guard opens by withdrawing the actuator attached from the switch head. The XCSE solenoid interlock switch is ideal for use with heavy duty industrial machines with a low rundown time.
The Telemecanique Sensors XCS-E series solenoid interlock switch has a power supply voltage rating of 24VAC/DC. It has 1 NO / 2 NC safety slow break contacts. The switch is made of a metal housing material and is interlocking, locking and unlocking by solenoid.

Note:

Actuators not included, must be ordered separately.

Features and Benefits.

• Preventa Safety Detection, Safety Switch.


• Rectangular design.


• Metal (body and head – Zamak).


• Key operated turret head.


• 2 NC + 1 NO (slow break – break before make).


• 2 cable entries tapped Pg 13.5


• 3 Poles.


• Terminal clamping.


• Locking – interlocking by solenoid.


• 1 LED (orange –guard closed and locked).


• 1 LED (green – guard open).


• Operating temperature is between -25°C and 60°C


• Maximum contact rating of 6 A


• Mechanical life is up to 1000000 cycles


• Weight 1.14 kg.

Certifications.

• IP67 rated


• EN1088


• EN60204


• EN 1088/ISO14119


• EN/IEC 60204-1


• EN/IEC 60947-5-1


• EN/ISO 12100


• UL508


• CSAC22.2 No 14
