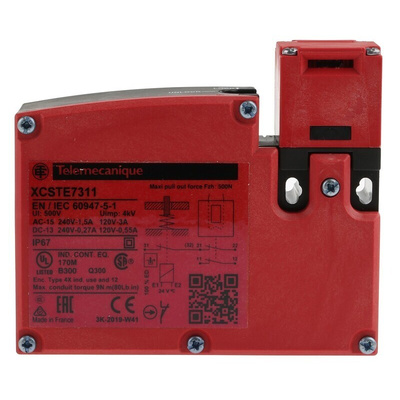

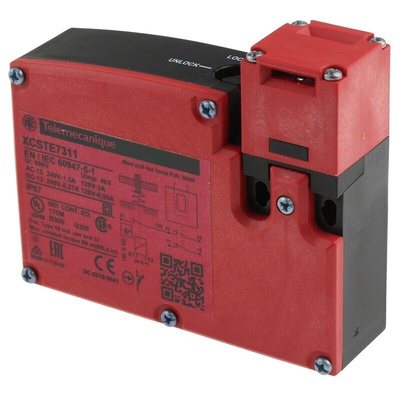

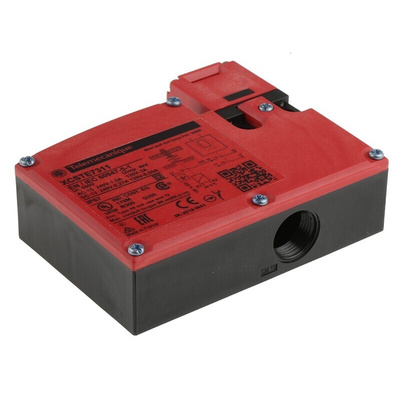

XCSTE7311, Telemecanique Sensors XCS-TE Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc

Telemecanique Sensors XCS TE Solenoid Interlock Switch.

From Telemecanique Sensors this is the XCS TE series of safety solenoid interlock switches providing you with the solution when running machinery and a guard or door stays closed. Interlock switches protect machine operators by stopping the equipment when the door or guard opens by withdrawing the actuator attached from the switch head. The XCSTE solenoid interlock switch is ideal for use with light duty industrial machines with a low rundown time.
The Telemecanique Sensors XCS-TE series solenoid interlock switch has a power supply voltage rating of 24VAC/DC. It has 2 NC safety slow break contacts. The switch is made of a plastic housing material and is interlocking, locking by solenoid.

Note:

Actuators not included, must be ordered separately.

Features and Benefits.

• Preventa Safety Detection, Safety Switch.


• Rectangular design.


• Plastic (body and head –PA, Polyamide).


• Key operated turret head.


• 2 NC (slow break - simultaneous).


• 1 cable entries tapped Pg 1


• 2 Poles.


• Terminal clamping.


• Locking – interlocking by solenoid.


• Operating temperature is between -25°C and 60°C


• Maximum contact rating of 10A


• Mechanical life is up to 1000000 cycles


• Weight 0.36 kg.

Certifications.

• IP67 rated


• EN 1088/ISO14119


• EN/IEC 60204-1


• EN/IEC 60947-5-1


• EN/ISO 12100


• UL508


• CSAC22.2 No 14
