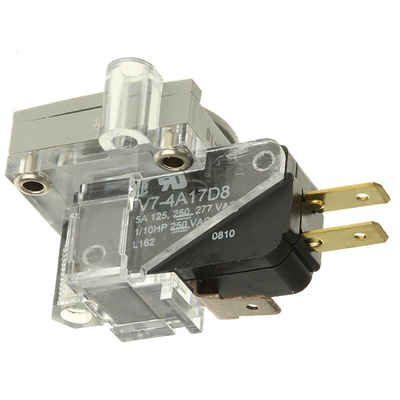

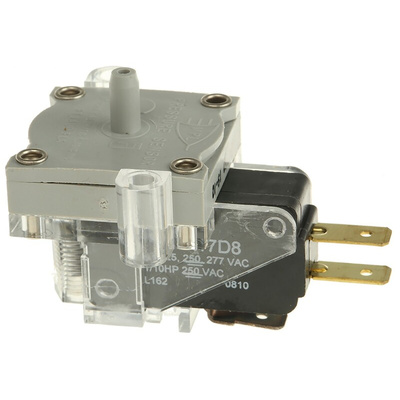

Sensitive - Series 2, Pressure Switch
Ratings: from 70mbar to 2.75bar
Sensitive switches for pressure and differential pressure measurement
GF polyester housing, polyurethane diaphragm, PB with gold inlay contacts
All are externally adjustable, also mountable in any orientation for a wide variety of applications
Termination type: Faston
Series 2: Adjustable snap action pressure switches, single port on pressure side, 3 port options: 5.0mm radial, 4.0mm perpendicular or 1/8 NPT brass connection - for NPT adaptors see 536-2577
Factory fitted spring for operating pressure range 0.07 to 0.27 bar.
3 additional colour coded springs are included for user selection of alternative operating pressure ranges:
Red 0.21 to 0.69 bar
Dark blue 0.62 to 1.38 bar
Yellow 1.31 to 2.75 bar
Approvals
UL and CSA certified
Техническая спецификация
MPL Pressure/Vacuum & Differential SwitchesCSA LR50215UL RECOGNISED E70125MPL 600 Series Dimensions| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
