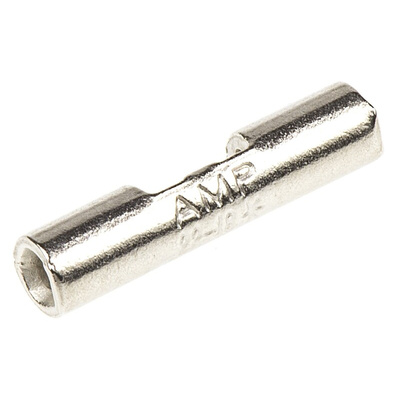

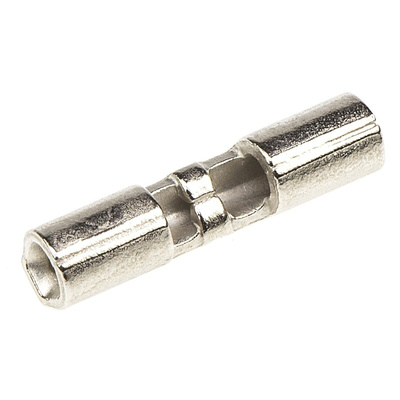

322822, TE Connectivity, STRATO-THERM Strap Butt Splice Connector, Nickel 22 → 16 AWG, Контакты

TE Connectivity SOLISTRAND STRATO-THERM Heat Resistant Strap Butt Splices

SOLISTRAND STRATO-THERM heat resistant strap butt splice crimp terminals for use where operating temperatures prevent standard insulated crimps being used. These STRATO-THERM heat resistant strap butt splice crimp terminals are made from nickel plated electrolytic copper and are designed to terminate solid and/or stranded conductors. When the terminal is crimped the wire inside is forced into the serrations or dimples of the barrel to maximise the electrical contact area after crimping.The maximum operating temperature for these STRATO-THERM strap butt splice crimp terminals is 343°C (650°F).

Note

For suitable hand crimp tool see stock number 162-3159

TE Connectivity STRATO-THERM Terminals and Splices

C-322822 STRATO-THERM Butt Strap Customer Drawing
