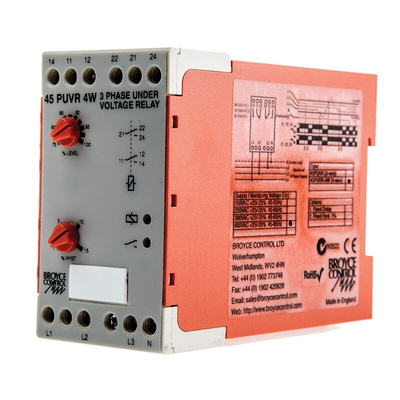

45PUVR-4W 400VAC, Broyce Control Phase, Voltage Monitoring Relay, 3 Phase, DPDT, Maximum of 400V ac, DIN Rail, Реле контроля

45PUVR - 3 phase Under-Voltage Relay

Detects under-voltage condition
Detects phase loss
Detects neutral loss (4-wire version)
Adjustment for trip level and hysteresis
Monitors own supply
Time delay: 200ms (from fault)
1 x DPDT relay output 8A
LED indication for supply and relay status
DIN rail housing
Write on identification tab
Dimensions: H78 x W45 x D99mm

Broyce Monitor Relays

Relay controllers manufactured using flame retardant material to UL94 VO
Electrical life: ≥150 000 operations
Suitable for use within ambient temperature environments from -20 to +60°C (except stock no. 361-1710 and 361-1681 which are suitable from -20 to +50°C)

Note

Output relay contact rating specified at 250Vac

UL Certificate

Datasheet

P48, 4500 & 70-Series Alternatives Cross Reference Version 0.1
