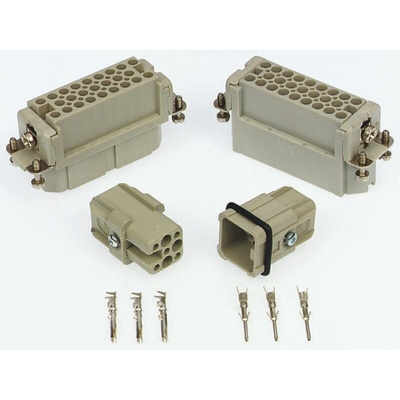

11.2210, Epic Contact Heavy Duty Power Connector Insert, Male, H-D Series

H-D Plug and Socket Inserts Crimp Termination. Formed Contacts and Tooling

Stamped and formed contacts
Tooling available

Note

Crimping tool 377-1121 is supplied in a tool case, without crimping dies and without locator

Standards

VDE 0110//72, 0110b, 79, VDE 0627//86

Warning

Connectors should not be coupled and decoupled under electrical load. Connectors of the same or different series being mounted side by side may be protected against incorrect mating by the use of coding options.

Approvals

SEV, UL, CSA

H-D & H-DD

Assembled connectors are type tested to 10A 250V a.c. and include the following features:

High density contact loading gives more power and control connections in smaller shell sizes
Machined contacts available to provide reliable interconnection and serviceability. Order contacts separately
HD contacts are terminated simply and effectively using a quality 8 point indent crimp tool
Coupled connectors have protection rating of IP65
Plug and socket inserts are interchangeable and a separate earth connection is made through all inserts. The earth is connected to metal body shells

EPIC H-D Connector Kit Data Sheet
