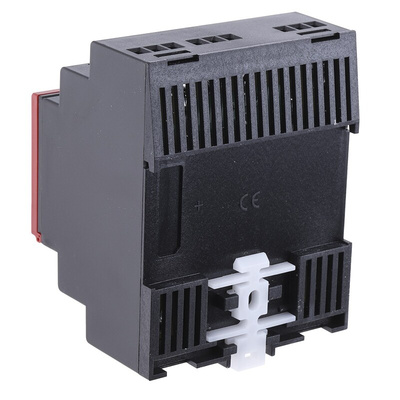

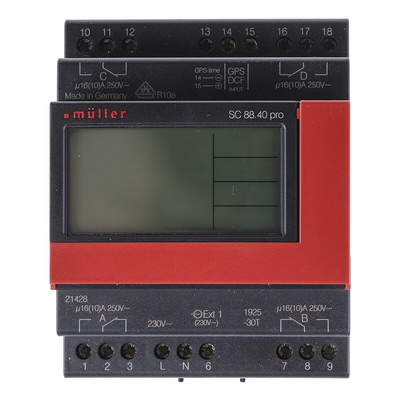

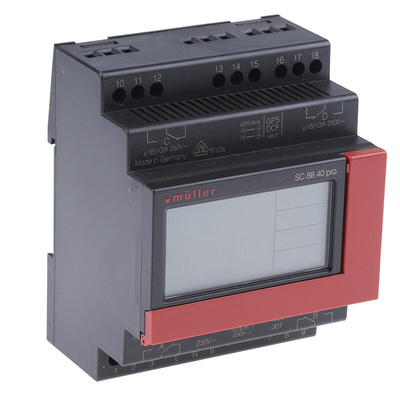

SC 88.40 pro, Muller 4 Channel Digital DIN Rail Time Switch Measures Minutes, 230 V ac

SC88

Unrestricted block programming of days, channels and switching functions
Can be programmed with supply disconnected
Permanent On/Off switch, manual override
Holiday switching of 1-99 days
Pulse function and segment length of 1 min (1 sec pulse)
71.5mm wide

Muller Time switch

The Finder interface relay module is an innovative, ultra-compact electromechanical device equipped with a 24VDC coil and an SPDT 1C/O contact configuration. This narrow design interface relay works as a coupling element used to send control signals to and from a PLC. The high number of approvals make it useful for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications thus optimising your panel installation. This electromechanical relay module has a small footprint that makes it ideal for applications where space-saving is essential.

Features and Benefits

• DIN rail mounting
• Minimum interval 1 minute
• 71.5mm wide
• Switching capacity 16A per channel
• Time base is quartz/DCF
• Holiday switching of 1-99 days
• Permanently ON or OFF with manual switch (perm ON/OFF)
• Manual override
• Automatic sorting of switching times on readout
• Unrestricted block programming of days
• Fully automatic daylight saving time (European, North American, or Australian standard adjustable)
• Elapsed time and pulse counter for each channel
• Cycle function/recycler function
• Screw terminal connection
• Operating temperatures range between -10°C and 55°C

Applications

• Ideal for outdoor and street lighting
• Control of lighting, heating and ventilation

Certifications

• IP20 rated
• DIN EN 60529

Remotely Programmable
