B07-101-A3KG, Norgren B07 Filter Regulator, 40μm, G 1/8, Automatic, Сборка

IMI Norgren Filter Regulator, 10 Bar Maximum Operating Pressure, G1/8 Port Connection - B07 Series - B07-101-A3KG

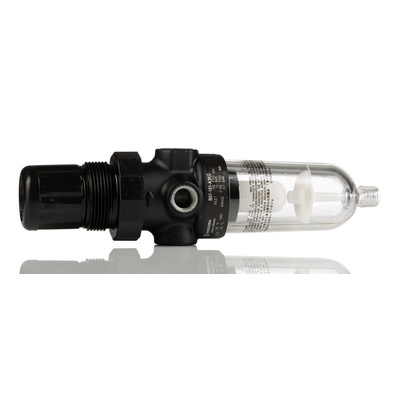

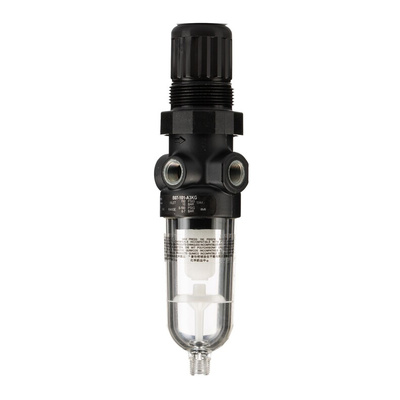

To improve the performance of your air supply, use this filter regulator from IMI Norgren. It filters out particles down to a size of 40μm to reduce contaminants efficiently. Moisture is drawn into the attached bowl, which features an automatic drain to save you time emptying it. A knob at the top of the filter regulator makes it easy to adjust the pressure and keep systems operating efficiently. Ports in the centre of the unit make it suitable for inline installation and a port on the front means you can add a pressure gauge.

Features & Benefits:

• Compact body design with a size of 41mm at the widest point, so it won't add bulk to your setup
• Transparent bowl for easy filter monitoring
• Screw fittings for quick assembly and maintenance

Applications:

• Medical equipment
• Chemical manufacturing
• Food processing
• Electronics industry

What pressure gauge fits on this filter regulator?

The pressure gauge you choose must be compatible with the port's G1/8 thread size. It also needs a dial with readings up to 10 bar in pressure, such as IMI Norgren's dual-scale gauge (822-4009).

G1/4-G1/8 Miniature Filter / Regulator with Automatic Drain Data Sheet
