F07-200-A3TG, Norgren F07 series 40μm G 1/4 10 bar Pneumatic Filter with Automatic drain, Фильтр

IMI Norgren Pneumatic Filter, 10 Bar Maximum Operating Pressure, 40μm Filtration Size - F07 Series - F07-200-A3TG

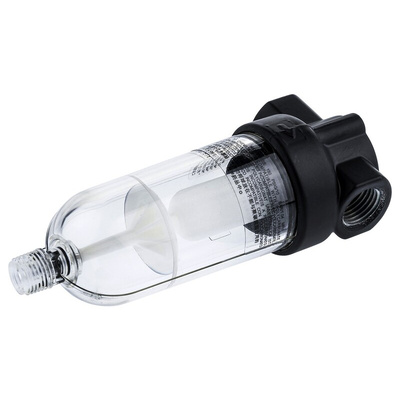

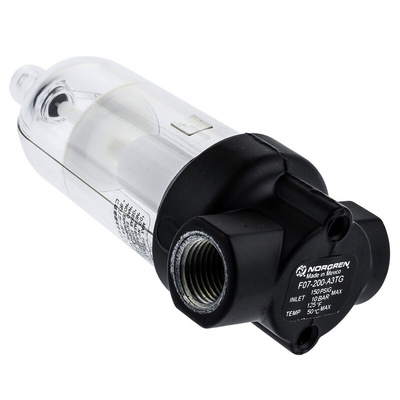

Remove contaminants from your air supply with this pneumatic filter from IMI Norgren. It has a filtration size of 40μm and is capable of removing solid and liquid particles to help keep the flow clean. The transparent bowl allows you to see inside for quick visual checks and easy troubleshooting, while the automatic drain saves maintenance time as there's no need to manually empty the bowl. With a typical flow rate of 11.5L/s, this unit works efficiently to ensure your pneumatic system functions properly.

Features & Benefits

• Screw-on bowl and tool-free connection speeds up installation and maintenance
• Compact length of 154mm and width of 42mm make fitting onto existing lines easier
• Zinc-alloy body and polycarbonate bowl provide durability

Applications

• Materials handling
• Processing machines
• Medical technology
• Tooling and fabrication

How important is it to filter air supplies?

Filtering air is an important part of keeping pneumatic systems reliable. Getting moisture and dust out of your air supply helps to increase the lifespan of components, which means you'll need fewer replacements in the future.

Datasheet
