SP 400, Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %, 34 x 21.3 mm, Вольтметр

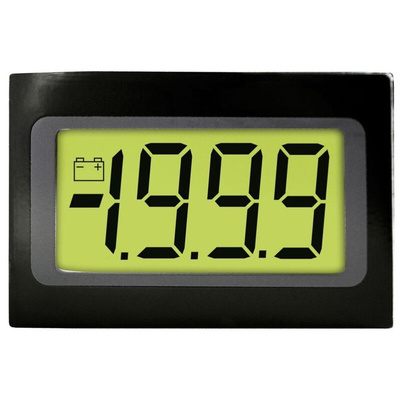

Lascar Digital Voltmeter

The Lascar EMV 3.5-digit digital voltmeter is an easy to mount, LED, panel meter. This electronic meter has an accuracy of ±1%. It features a negative rail generator that helps to measure a signal referenced to its power supply GND. The LED backlighting ensures excellent readability under low light conditions. It is easily fitted into the panel, using the fixing clip provided. Its low cost means it is equally suitable for high as well as low volume applications. The design of the panel meter's housing ensures splash proofing using the supplied seal. Its full-scale reading is 200mVDC and supply voltage ranging between 3VDC and 7.5VDC.

Features and Benefits

Digit height is 9.75mm
Auto-zero
Auto polarity
Programmable decimal points
LED backlighting
Low battery warning
Operating temperature ranging between 0°C and 50°C

Applications

Precision instrumentation systems
Power supply monitoring
Test boxes
Panel-mount indication
Low power voltage measurement

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet
