SP 300, Lascar Digital Voltmeter DC, LED Display 3.5-Digits ±1 %, 34 x 21.3 mm, Вольтметр

Lascar Digital Voltmeter

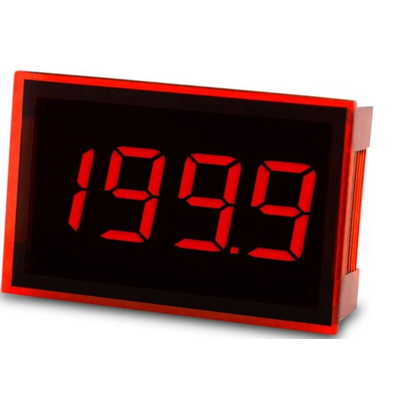

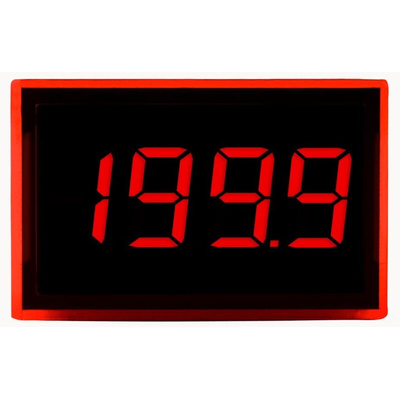

The Lascar EMV 3.5-digit digital voltmeter is an easy to mount, LED, panel meter. This electronic meter has an accuracy of ±1%. It features a negative rail generator that enables the meter to measure a signal referenced to its power supply of 0V. The bright LED display ensures excellent readability under low light conditions. It is easily fitted into the panel, using the fixing clip provided. Its low cost makes it equally suitable for high as well as low volume applications. The design of the panel meter’s housing and seal ensures splashproof in many application. Its full-scale reading is 200mVDC and supply voltage ranging between 4.75V and 5.25V.

Features and Benefits

Digit height is 9.4mm
Auto-zero
Auto-polarity
Programmable decimal points
Bright red LED display
Simplified connection
Operating temperature ranging between 0°C and 50°C

Applications

Precision instrumentation systems
Power supply monitoring
Test boxes
Panel-mount indication

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet

SP Series Low Profile Meters - Data Sheet
