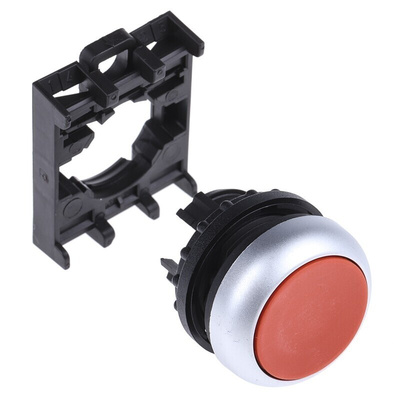

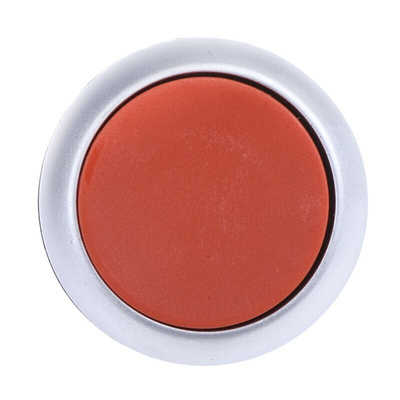

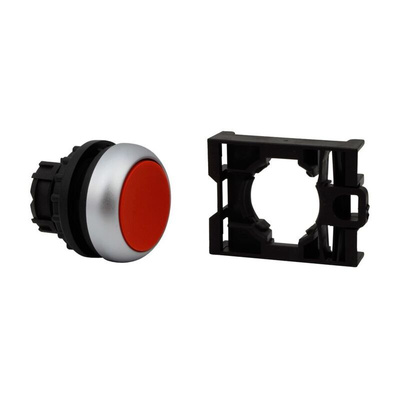

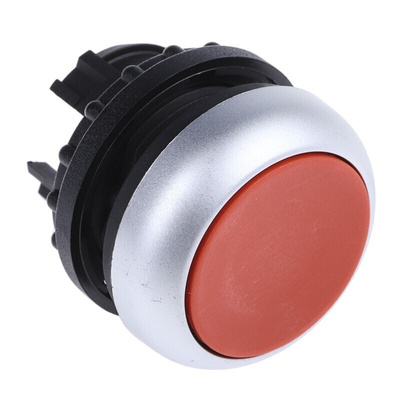

78635766 M22-D-R+M22-A, Eaton RMQ Titan M22 Series Red Momentary Push Button Head, 22mm Cutout, IP69K

Eaton RMQ Titan Push Button Head, 29.7mm Head Diameter, Fixing Adapter Included - RMQ-Titan / M22 Series - 78635766 M22-D-R+M22-A

Take charge of your switching device with this push button head from Eaton. As a momentary switch, it only closes the connected circuit when pressed, giving you precise machine control. It's able to handle up to 3,600 operations an hour, so keeps pace with intense switching tasks. Getting the unit set up is no trouble, as it slots into a standard 22mm panel cutout. An IP69K rating indicates it's a safe bet for use in dusty settings where hot, high-pressure water jets are likely. Look for push button heads like this in food-production facilities and the construction industry.

Features & Benefits

• Large head diameter of 29.7mm, making it easy to operate with gloves
• Mounts flush to the panel to stop contamination from getting in
• Bright red actuator stands out on a busy panel
• Comes with a fixing adapter for secure mounting against movement
• Wide operating temperature range between -25°C and +70°C for wide compatibility with industrial settings

What's the service life of this push button head?

This unit has a mechanical lifespan of over five million cycles, so it delivers long-lasting hardware control.

Note

Eaton formerly known as Moeller

Red Pushbutton M22-D-R

Brochure - M22 Design And Functionality
