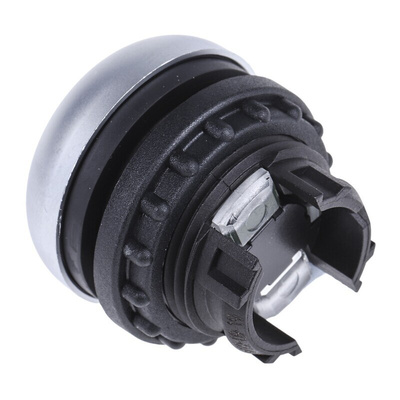

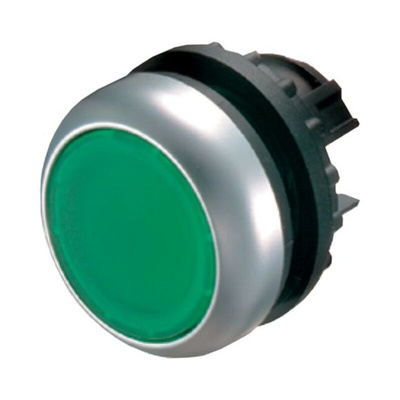

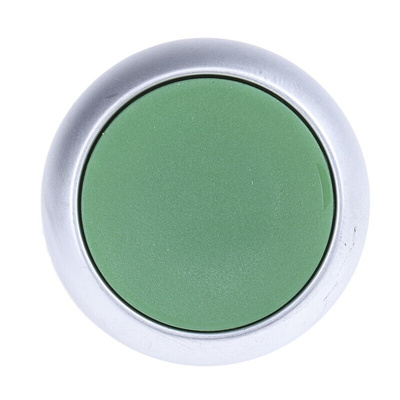

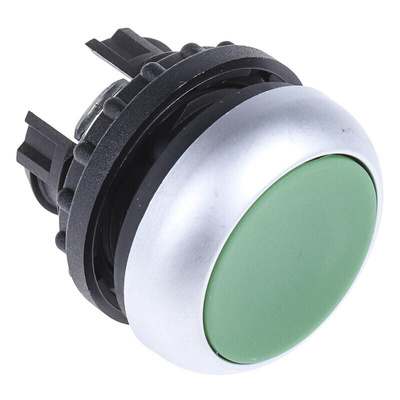

78635769 M22-D-G+M22-A, Eaton RMQ Titan M22 Series Green Momentary Push Button Head, 22mm Cutout, IP69K

Eaton Push Button Head, Green Button, 29.7mm Diameter - M22 Series - 78635769 M22-D-G+M22-A

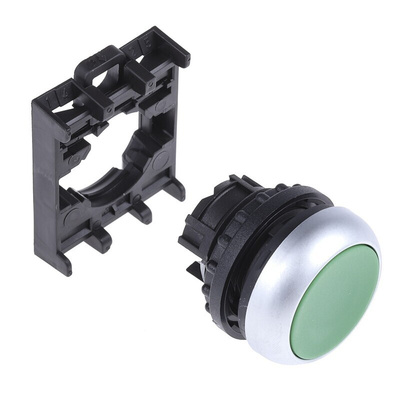

Stay in control of your machinery with this round push button head from Eaton. To reduce installation time, it comes fully assembled in one piece with a simple modular design. Simply clip in your choice of adapter and contact block. This momentary switch has a spring return for efficiency. The green button is capable of at least 3600 operations per hour, making it suitable for frequent manual machine starts. Use it for safety systems, machine panels or electric doors and gates.

Features & Benefits

• Broad operating temperature range of -25°C to +70°C for use in extreme environments
• IP69K rating indicates it's dust-tight and resistant to powerful jets of water from any direction
• SMARTWIRE-DT compatible, enabling you to connect it to all your panel's push buttons with one cable
• Standard cutout diameter of 22mm, so slots neatly into existing holes

What's this push button head made from?

As the unit's made from plastic, it's durable and easy to wipe clean.

What's the mechanical durability of this push button head?

Thanks to a mechanical durability of 5,000,000 cycles, you can be sure this component won't wear out quickly.

Note

Eaton formerly known as Moeller

M22-D-G Data Sheet

M22-A Datasheet

Brochure - RMQ Pilot Devices

Instruction Sheet - M22 Series

Catalogue - Product Range Catalog
