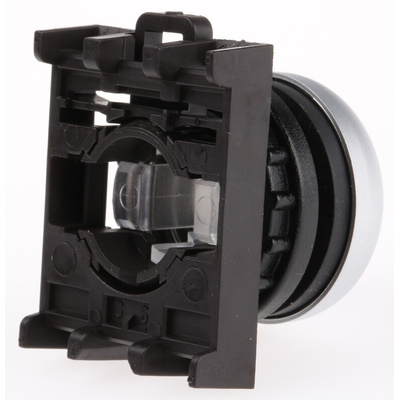

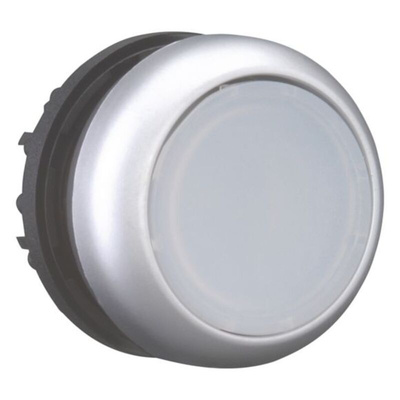

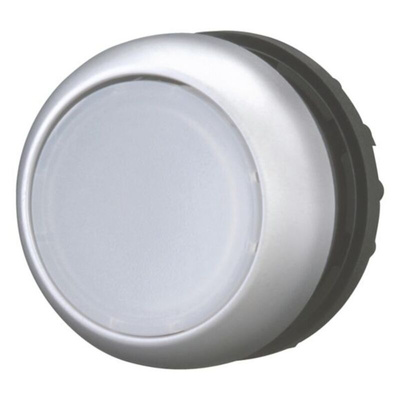

78635801 M22-DL-W+M22-A, Eaton RMQ Titan M22 Series White Illuminated Momentary Push Button Head, 22mm Cutout, IP69K

Eaton Push Button Head, Flush Design, Up to 3600 Operations/h - M22 Series - 78635801 M22-DL-W+M22-A

Set your machine in motion with this push button head from Eaton. It's a momentary type with a built-in spring return to make sure it snaps back to its resting position as soon as you release it. Thanks to the illuminated design, it lights up when active so you can quickly tell its operating status. Thanks to built-in resistance to mechanical shock, this is a tough piece of kit that gets on with job in harsh settings. Installation is simple – just slot the button into a standard 22mm cutout on your control panel.

Features & Benefits

• Mechanical lifespan of more than 5,000,000 cycles for long-term performance
• Hard-wearing titanium front ring to withstand impact
• Flush design helps reduce the risk of accidental pressing

Where are momentary switches used?

Momentary switches can't be left on, so they're used to manage short-term functions or to control machines precisely. You'll find them opening and closing roller doors or adjusting hospital beds.

How often can I use the push button head?

Thanks to its operating frequency of up to 3600 operations per hour, you can use this device heavily without damaging it.

Note

Eaton formerly known as Moeller
