78635802 & M22-DL-R+M22-A, Eaton Round Illuminated Red Push Button Head - Momentary, M22 Series, 22mm Cutout, Round

Eaton Illuminated Flush Push Button, no LED

The RMQ-Titan M22 series from Eaton offers a wide range of attractive, ergonomically designed illuminated and non-illuminated push-buttons including LED elements, selector switches, key switches, push-pulls, alternate action and twist-to-release operators.

This comprehensive range of pilot devices is engineered to ensure that your machines, systems, and processes keep running smoothly and offers a wide variety of applications and processes. Designed for optimal functionality with a high degree of protection this range offers a wide range of solutions for your business

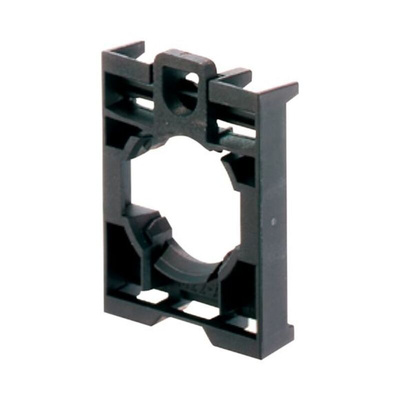

Eaton Fixing Adapter M22-A

Forming part of Eaton's M22 range is this fixing adaptor, also referred to as a mounting adaptor or mounting clamp. This adaptor is front mounting for 3 contact LED elements.

Features & Benefits

For 1 function element M22-SWD-K or LED element M22-SWD-LED in addition to 1 or 2 elements M22-K possible sequence numbers on fixing adaptor
Front fixing
Features a connection to SmartWire-DT
The ambient temperature when open is -25 to +70°C

Approvals

UL, CSA.

Standards

IEC/EN60947.

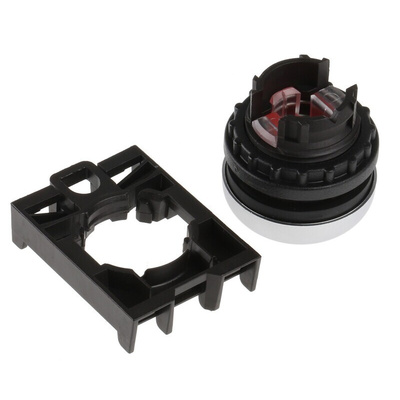

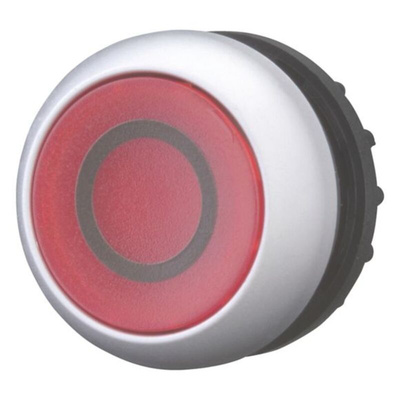

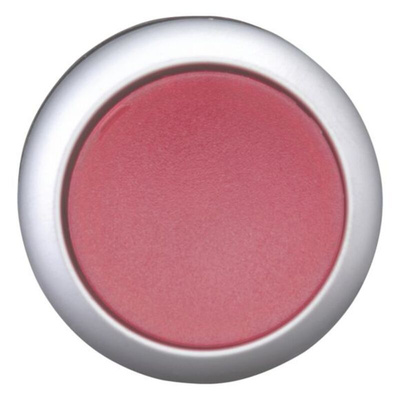

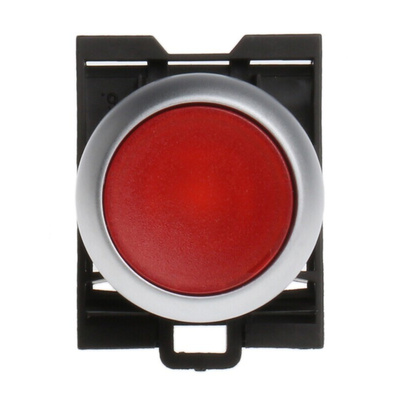

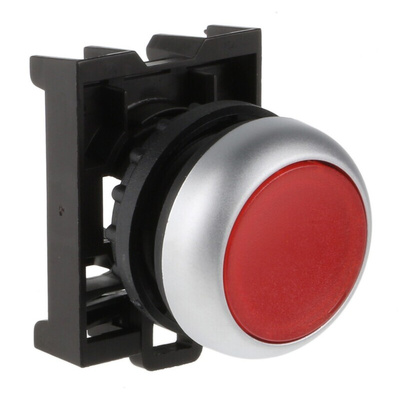

Eaton Round Illuminated Red Push Button Head

This Eaton round illuminated button head, also known as a push button switch or control, comes complete with the fixing adaptor for contact blocks. It offers an IP rating of IP67 offering complete protection against contact (dust-tight) and immersion into water of up to 1 meter in depth. The flush button head with the use of light, Red colour and chrome front ring make it an easy and clear design suitable for a variety of needs.

Features and Benefits

RMQ-Titan (drilling dimensions 22.5 mm)
Protection type: IP67, IP69K
Titanium front ring
Spring-return
momentary function
Suitable for illumination

M22-DL-R Data Sheet

M22-A Datasheet
