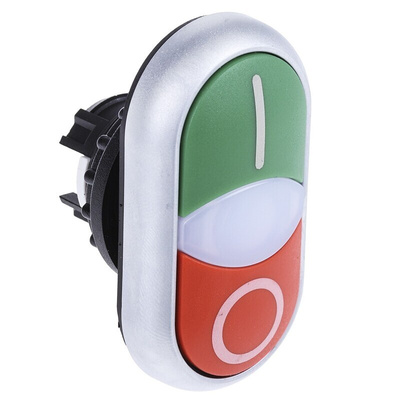

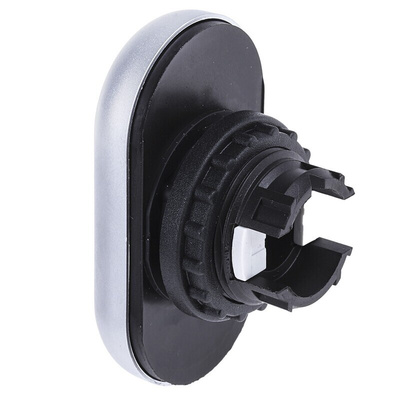

78635825 M22-DDL-GR-X1/X0+M22-A, Eaton RMQ Titan M22 Series Green, Red Illuminated Momentary Push Button Head, 22mm Cutout, IP66

Eaton Push Button Head, IP66 Rating, Double Button Type - M22 Series - 78635825 M22-DDL-GR-X1/X0+M22-A

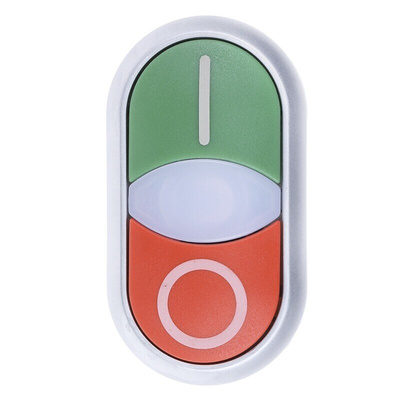

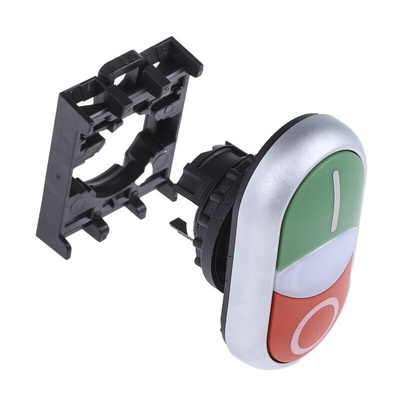

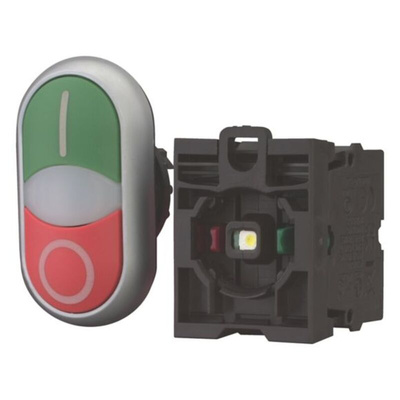

When there's no room for error, install this user-friendly push button head from Eaton on your control panel. Thanks to the clarity of the red and green button colours, along with universal ON and OFF symbols, you'll be able to start and stop your machines simply. A built-in status indicator light makes it even easier to use. The unit has a standard cutout diameter of 22mm and it clips into M22 series adapters and contact blocks, so it's widely compatible. As it works with the SmartWire-DT single cable system, connecting this button head up is simple.

Features & Benefits

• Plastic material for corrosion resistance and durability
• IP66 rating indicates it's dust-tight and protected from powerful water jets in every direction
• Broad operating temperature range of -25°C to +70°C for safe use in challenging conditions

What type of actuation does this push button head have?

The device operates through momentary actuation, meaning it only activates connected equipment when it's pressed down. A spring action returns the button to its normal position to reset the operation.

Note

Eaton formerly known as Moeller
