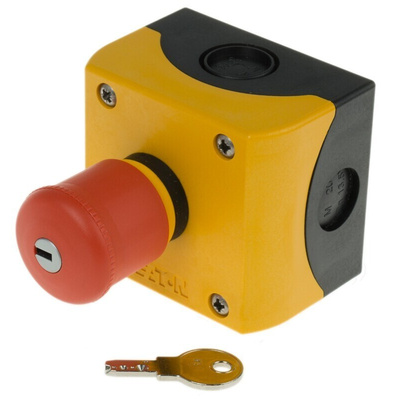

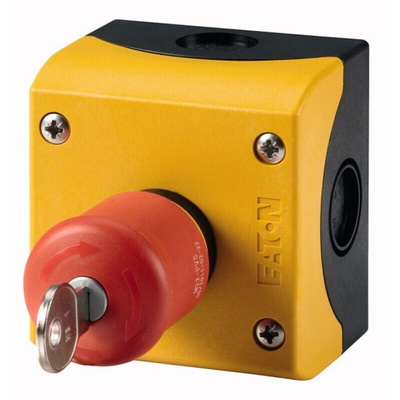

216523 & M22-PVS/KC11/IY, Eaton Surface Mount Emergency Button - Key Reset, NO/NC, Round Head

Eaton Emergency Stop Button - RMQ Titan Range

Forming part of Eaton's RMQ Titan range of emergency buttons, this emergency button provides a solution for control circuit devices within a multitude of applications, but more specifically machines and panel building. It can sometimes be referred to as controlled stop emergency button, this is because of the nature of what it has been designed to do - stop, in the case of an emergency through the push of a button.

Commonly a user may be sitting at a control desk, within suspended operator panels or in a control panel. This RMQ Titan emergency stop button has been designed to offer a solution in the case of an emergency within these types of installations and environments. The button its self has been ergonomically designed, providing ease of use for the people that use it. The button is supplied as a complete unit, enabling easy installation for worldwide applications.

The M22-PVS/KC11/IY is a complete unit with 1 key lock mechanism.
The degree of protection is regulated by IP67 and IP69K for this item.

IP rating explanation

•IP69K (rated as ’’complete assurance ’’provides the highest protection rating on the scale)
•IP67 (rated as "dust tight" and protected against immersion)

The ambient temperature for this unit is -25°C up to +70°C with a pull-release function.

Frequently asked questions & answers

What is the different between a push button switch for an emergency stop and a general-purpose push button switch?
A general-purpose push button switch is used for controls, e.g. to start machine operation or simply to switch modes. An emergency stop push button switch however, is mainly used as a safety measure to stop hazardous events.
What is the mechanical shook resistance for this item?
The shook duration is 11 ms

Approvals

UL; CSA; IEC/EN60947

Emergency stop button M22-PVS/KC11/IY
