216525 & M22-PV/KC11/IY, Eaton Surface Mount Emergency Button - Pull to Reset, 22.5mm Cutout Diameter, NO/NC, Round Head

Eaton Emergency Stop Button - RMQ Titan Range

Forming part of Eaton's RMQ Titan range of emergency buttons, this emergency button provides a solution for control circuit devices within a multitude of applications, but more specifically machines and panel building. It can sometimes be referred to as controlled stop emergency button, this is because of the nature of what it has been designed to do - stop, in the case of an emergency through the push of a button.

Commonly a user may be sitting at a control desk, within suspended operator panels or in a control panel. This RMQ Titan emergency stop button has been designed to offer a solution in the case of an emergency within these types of installations and environments. The button its self has been ergonomically designed, providing ease of use for the people that use it. The button is supplied as a complete unit, enabling easy installation for worldwide applications.

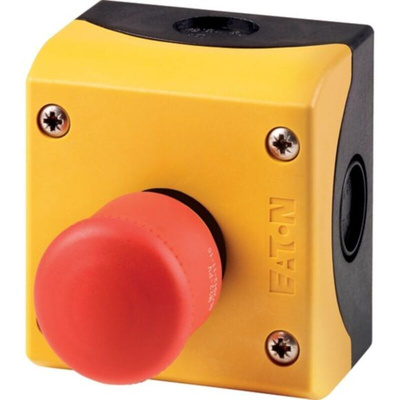

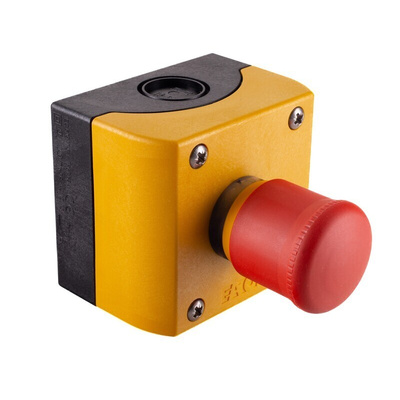

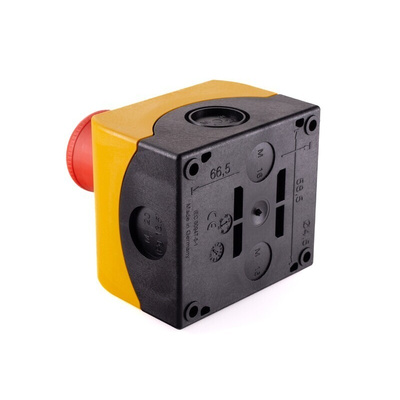

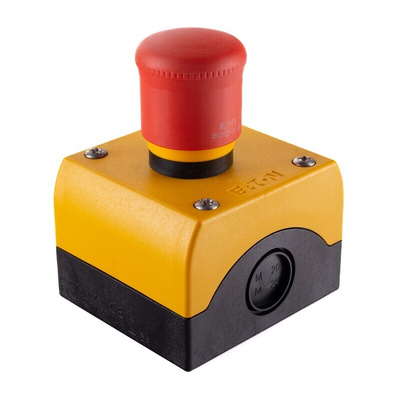

M22-PV/KC11/IY Emergency Stop Push Button

The M22-PV/KC11/IY hosts a "pull to release function" with a mushroom-shaped button design. The system is supplied as a complete unit and is tamper-proof according to ISO 13850/EN 418.

Features & Benefits

• The degree of protection is IP66 and IP69K, this means that the emergency button is protected completely from the ingress of dust and other particles and direct, high-pressure jets. The IP69K IP rating means that the push button has been tested to a point where complete reassurance of the highest protection is in place
• The ambient temperature for the unit is -25°C up to +70°C
• Forms part of the RMQ-Titan range
• Features a diameter of 38mm
• Non-illuminated
• Screw connection
• Red button with a yellow enclosure cover

What is the difference between a push-button switch for an emergency stop and a general-purpose push button switch?

A general-purpose push button switch is used for controls, e.g. to start machine operation or simply to switch modes. An emergency stop pushbutton switch, however, is mainly used as a safety measure to stop hazardous events.

What is the mechanical shook resistance for this item?

The shook duration is 11ms

Approvals

UL; CSA; IEC/EN60947
