78635861 M22-L-R+M22-A, Eaton Red Pilot Light Head, 22.5mm Cutout RMQ Titan M22 Series

Eaton RMQ Titan Pilot Light Head, Red, Flush Panel Mount - RMQ-Titan / M22 Series - 78635861 M22-L-R+M22-A

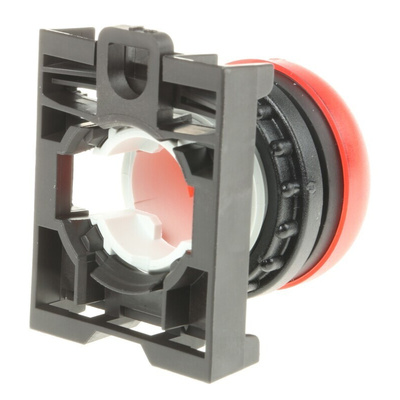

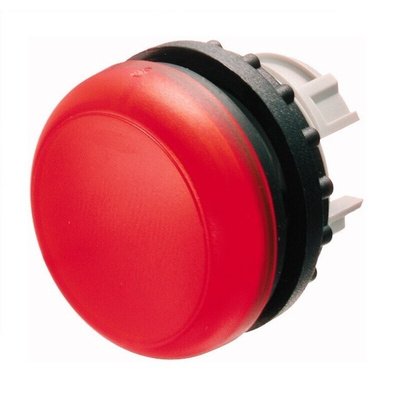

Do you need a highly visible indicator unit for your equipment? This round pilot light head from Eaton is coloured red and allows light from an attached LED to be seen easily, even in brightly lit or sunny environments. Its front ring is made of titanium to protect it from cracking under pressure and make it resistant to abrasion and vibration. The device comes with a contrasting black fixing adaptor and is suited to flush panel mounting, for simple installation.

Features & Benefits

• IP69K rating provides protection against dust ingress and powerful hot water jets
• Shock resistance of 30g means it can absorb sudden impact without being damaged
• Rated insulation voltage of 250V offers protection against electric shocks as a result of current leakage

What's the diameter of this pilot light head indicator?

The diameter of this pilot light head indicator is a compact 29.7mm, so it won't use much space on your panel.

Can this pilot light head indicator handle extreme temperatures?

With its wide operating temperature range of -25°C to +70°C, this device keeps working in harsh conditions.

Note

Eaton formerly known as Moeller

M22-L-R Datasheet

Instruction Sheet - RMQ Titan

Datasheet - Mounting Clamp
