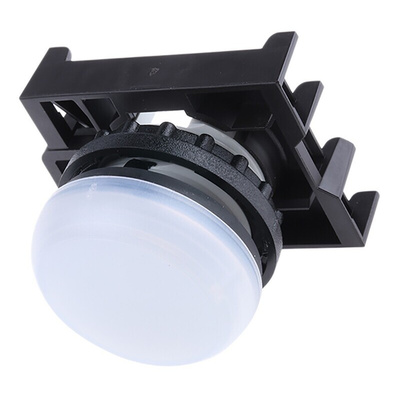

78635862 M22-L-W+M22-A, Eaton White Pilot Light Head, 22.5mm Cutout RMQ Titan M22 Series

Flush Indicator

Complete with fixing adaptor for fitting LED elements
IP66/67 Rated

Standards

IEC/EN60947.

Approvals

UL, CSA.

Eaton RMQ Titan White Pilot Light Head, 22.5mm Cutout Diameter, 250V Insulation Voltage - RMQ-Titan / M22 Series - 78635862 M22-L-W+M22-A

Need a way to quickly monitor equipment? Use this pilot light head from Eaton with standard LEDs to display the operating status of your machinery. It has a maximum withstand voltage of 4000V, so it's protected from damage caused by sudden voltage spikes. A compact diameter of 22.5mm makes this pilot light head suitable for areas where space is tight. Its body is made from sturdy plastic, which is resistant to moisture and impact for a long lifespan. An IP69K rating means this unit is completely protected from dust and resistant to hot, high-pressure water jets, so you can rely on it for safety in areas where wash-downs take place.

• Compatible with other components in the M22 series for versatile use
• Flush panel-mounting method for quick and secure installation
• Wide operating temperature range from -25°C to +70°C for use in extreme industrial conditions
• Can be wired with solid or stranded wires between 0.5 and 1.5 mm² for versatility

What colour is this pilot light head?

This pilot light head is white, so it's easy to see, even in dim environments.

Note

Eaton formerly known as Moeller

Indicator light,flush,white M22-L-W

Instruction Sheet - M22 Series
