78635875 M22-WRLK-G+M22-A, Eaton RMQ Titan Series 2 Position Selector Switch Head, 22mm Cutout, Green Handle

Eaton Illuminated Selector Switch Head - M22 Series

Eaton's M22 range of illuminated selector switch heads (sometimes be referred to as rotary selector switch or function selector switch) are designed to simplify the process of buying individual components. Available with either momentary, latching or maintained switching in 2 to 4 position options, these switch actuators make it easy to select the right switch type for your electrical and industrial control needs. Ideally suited for industrial applications the front elements have an enhanced IP66 protection rating making them dust tight and protected against water projection.

Features and Benefits

• Mechanical lifespan of over 1,000,000 operations
• IP66 rating, offering protection against solids, such as dust, and liquids
• Operating temperature range of -25°C to +70°C
• Single selector head complete with fixing adapter for contact clocks and LEDs
• Titanium bezel
• Standard fixing aperture of 22.5 mm
• Available in a choice of colours

Uses and Applications

• Automation and control environments for mounting in control panels
• Dangerous equipment such as motors that require human intervention to operate.
• Public buildings to control lighting in restrooms, corridors etc.

Standards

IEC/EN60947.

Approvals

UL, CSA.

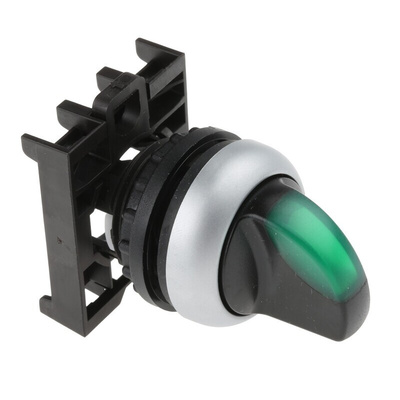

Eaton RMQ Titan 2-Position Selector Switch, Latching, 22.5 mm Cutout - RMQ-Titan / M22 Series - M22-WRLK-G+M22-A

Eaton's two-position, rotary selector switch is ideal for machinery where you need two control options. As a latching switch actuator, it's designed to remain (or stay put) in the selected position without further input from the operator. The illuminated, thumb-grip knob actuator is easy to use and features a 60° angle of throw (the angle between the two positions). It's robustly built with a titanium front ring and is coloured green for immediate identification in busy environments. Switches like this one are commonly used in automotive applications and control-system panels.

• Flexible component with optional stay-put or spring-return set up (using coding adapter set 399-3264)
• Standard cutout diameter of 22.5 mm to save on installation time
• IP66 (ingress protection) rating means it's suitable for harsher environments
• Wide operating temperature range of -25°C to +70°C, so it can withstand extreme conditions

What protection does an IP66 rating offer?

IP is a standardised measure of ingress protection. An IP66 rating means this switch is completely dust-tight and protected from high-pressure jets of water.

Note

Eaton formerly known as Moeller

Illuminated selector switch actuator M22-WRLK-G
