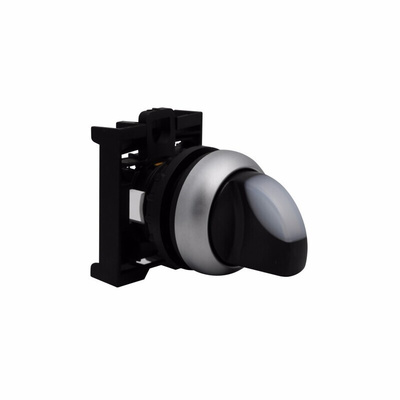

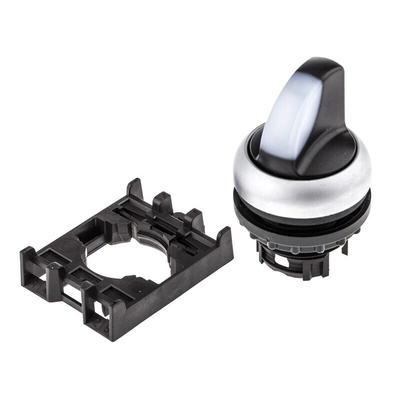

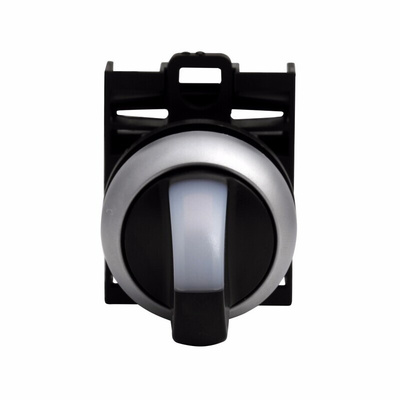

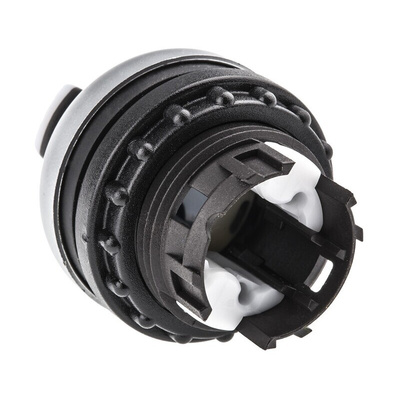

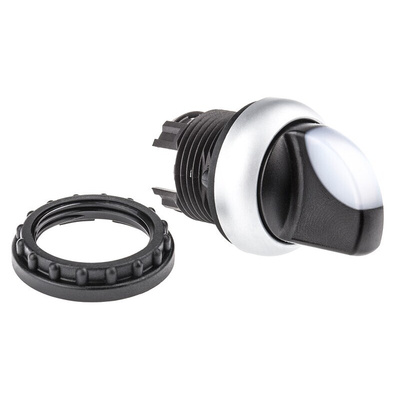

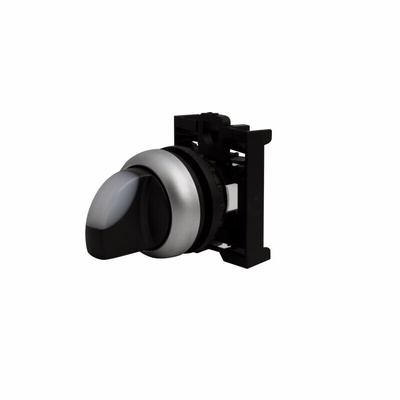

78635877 M22-WRLK-W+M22-A, Eaton RMQ Titan Series 2 Position Selector Switch Head, 22mm Cutout, White Handle

Eaton Illuminated Selector Switch Head - M22 Series

Eaton's M22 range of illuminated selector switch heads (sometimes be referred to as rotary selector switch or function selector switch) are designed to simplify the process of buying individual components. Available with either momentary, latching or maintained switching in 2 to 4 position options, these switch actuators make it easy to select the right switch type for your electrical and industrial control needs. Ideally suited for industrial applications the front elements have an enhanced IP66 protection rating making them dust tight and protected against water projection.

Features and Benefits

• Mechanical lifespan of over 1,000,000 operations
• IP66 rating, offering protection against solids, such as dust, and liquids
• Operating temperature range of -25°C to +70°C
• Single selector head complete with fixing adapter for contact clocks and LEDs
• Titanium bezel
• Standard fixing aperture of 22.5 mm
• Available in a choice of colours

Uses and Applications

• Automation and control environments for mounting in control panels
• Dangerous equipment such as motors that require human intervention to operate.
• Public buildings to control lighting in restrooms, corridors etc.

Standards

IEC/EN60947.

Approvals

UL, CSA.

Eaton RMQ Titan Selector Switch, 2 Positions, 22mm Cutout - RMQ-Titan / M22 Series - 78635877 M22-WRLK-W+M22-A

Use this reliable selector switch from Eaton to start, stop or change the speeds of your commercial, domestic and industrial applications. Two switching positions let you initiate and control different operations on equipment. The latching mechanism keeps the switch in place once a function is selected to prevent accidental slips and unintended processes. This is a complete unit and comes with a fixing adapter for contact clocks and LEDs, so there's no need to buy individual parts. You can use this versatile component on control panels or for lighting in corridors.

Features & Benefits

• IP66 (ingress protection) rating indicates the switch is sealed from dust and water
• Thumb grip for firm handling and easy turning of the switch
• Wide operating temperatures from -25°C to +70°C for use in demanding environments
• Robust construction that's able to withstand mechanical jolts and vibrations

Can I use this selector switch on dangerous machinery like agricultural equipment?

Yes. This selector switch allows you to manually choose operations. This prevents the accidental starting or running of equipment, which could lead to damage or injury.

Note

Eaton formerly known as Moeller

Illuminated selector switch actuator M22-WRLK-W

Instruction Sheet - 78635877 M22-WRLK-W+M22-A
