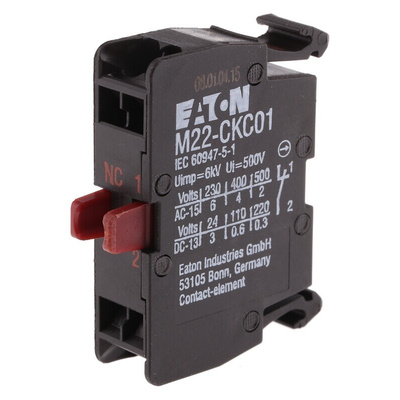

216387 M22-CKC01, Eaton RMQ Titan M22 Series Contact Block for Use with RMQ Titan Series, 500V, 1 NC

Eaton Contact Block, 500V Rated Insulation Voltage, 6A Current Rating - M22 Series - 216387 M22-CKC01

Want to step up the reliability of your RMQ Titan series switches and signal controllers? Pair them with this single NC contact block from Eaton. It makes or breaks circuits, so it's essential for smooth system performance. Tough plastic casing resists corrosive and abrasive damage, making this a suitable option for heavy-duty industrial environments. The IP20-rated housing insulates live wires and contacts, so you can be sure of a finger-proof unit that cuts the risk of shocks. You can use this block for automated factory applications and energy distribution panels.

Features & Benefits

• Electrical lifespan of 5,000,000 cycles ensures a long-lasting unit
• IEC 60947-5-1 standard compliance indicates quality and safety approval for control circuit devices and switching elements
• Wide operating temperature range between -25°C and +70°C for use in demanding conditions

How do I install this contact block?

This is a rear-mounting unit, which means you install it behind a panel. The design lets you remove the panel while leaving the wiring in place for speedy installation.

How do I terminate contacts in this contact block?

It has a clamp cage design, meaning you simply insert the conductor through a channel for secure termination.

Note

Eaton formerly known as Moeller
