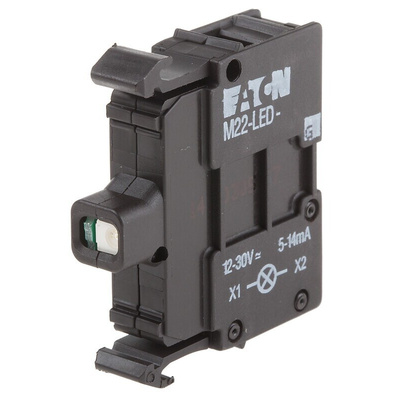

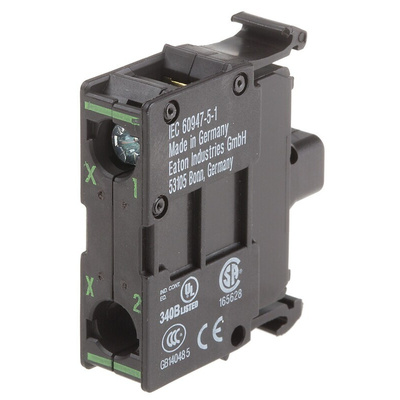

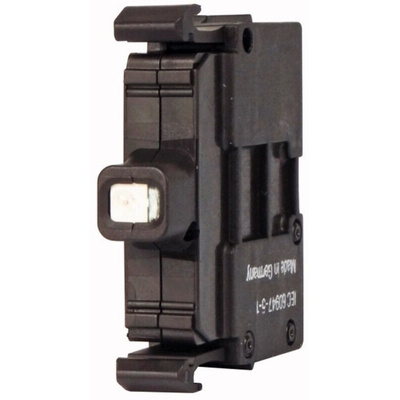

216559 M22-LED-G, Eaton M22 Series Light Block, 12 → 30V ac/dc, Световой блок

Eaton Light Block, Green, 8 to 15mA Operating Current - M22 Series - 216559 M22-LED-G

Illuminate your push buttons using this light block from Eaton. For ease of status monitoring, it's activated when the button is pressed. The bright green LED lamp makes the unit highly visible, even in dimly lit environments. Thanks to an IP20 rating, you can be sure it's finger-safe and protected against objects larger than 12mm for electrical safety. A voltage rating between 12 and 30V AC/DC makes this a versatile choice for use in low-voltage applications such as industrial automation equipment.

Features & Benefits

• Low power consumption of 0.26W for energy efficiency and minimal heat dissipation
• Screw terminal type for ease of installation without complex tools
• Rated impulse withstand voltage of 6000V AC means it can resist sudden voltage spikes to boost electrical safety

What's the lifespan of this light block?

This light block has a lifespan of 100,000 operating cycles, so you can rest assured that it will last a long time.

What temperature range can I use this light block in?

As the block has a wide operating temperature range of -25°C to +70°C, it's safe for use in demanding environments.

Note

Eaton formerly known as Moeller
