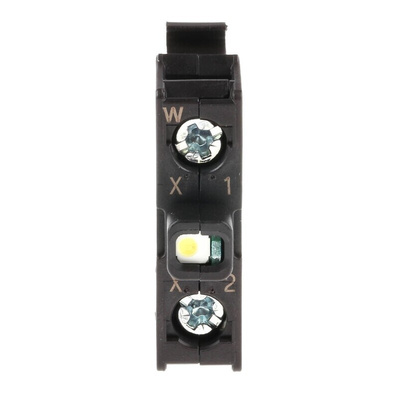

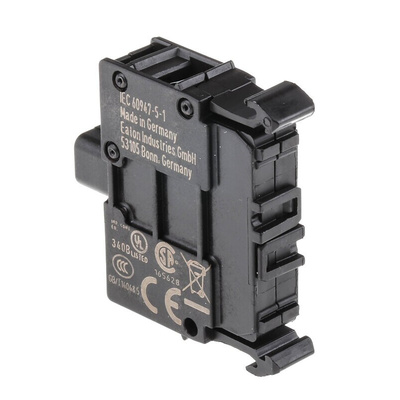

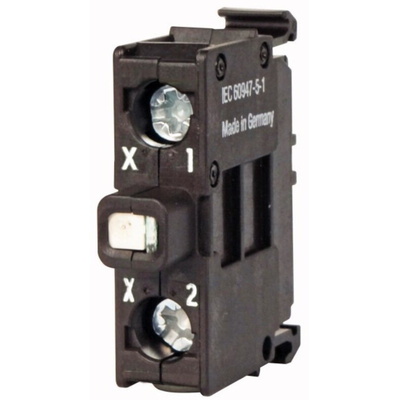

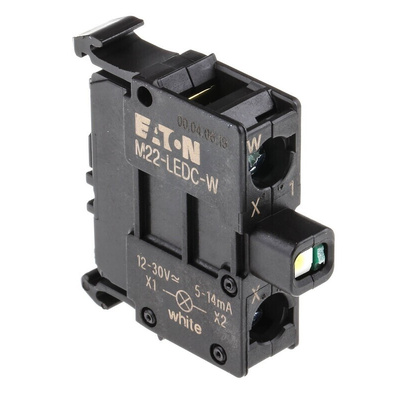

216560 M22-LEDC-W, Eaton M22 Series Light Block, 12 → 30V ac/dc, Световой блок

Eaton Light Block, 15mA Current Rating, 6000V AC Impulse Withstand Voltage - M22 Series - 216560 M22-LEDC-W

Need to reliably illuminate a push button? Turn to this light block from Eaton. Its bright LED makes it easy to access and operate your equipment, even in dim work spaces. The unit has a low power consumption of 0.26W, so it's an energy-efficient choice and emits low heat. A current rating of 15mA indicates it's suitable for low-powered systems. As it has a screw termination design, this block can be installed without the need for specialised tools.

Features & Benefits

• Mechanical lifespan of up to 100,000 cycles for long-term performance
• Wide operating temperature between -25°C and +70°C for use in demanding conditions
• IP20 rating means it's touch-proof and shielded from objects larger than 12mm
• Can withstand up to 30g of impact for high shock resistance

Can this component resist power surges without failure?

Yes, this component has an impulse withstand voltage of 6000V AC, which means it can resist sudden power surges without failure.

Can I install this device in high-voltage applications?

No, this device has a maximum voltage rating of 30V AC/DC, so it's best suited for low-voltage applications.

Note

Eaton formerly known as Moeller

M22-LEDC-W Datasheet

Instruction Sheet - RMQ- Titan M22-, M22S-, M22M- (M22-)
