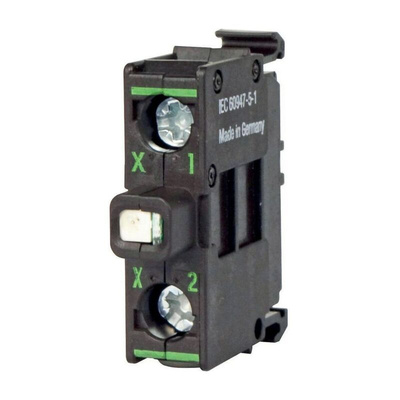

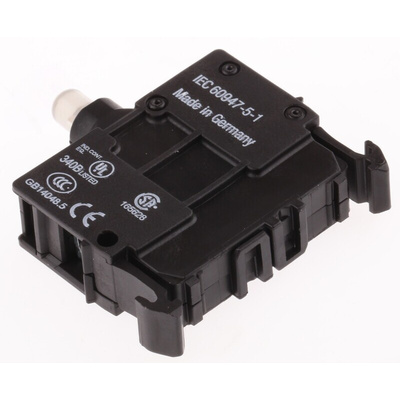

216562 M22-LEDC-G, Eaton RMQ Titan M22 Series Light Block, 12 → 30V ac/dc, Green Light, Световой блок

Eaton Light Block, Green Illumination, 15mA Current Rating - RMQ Titan Series - 216562 M22-LEDC-G

Make it easy to find buttons on your control panel with this light block from Eaton. It mounts underneath a button and illuminates when the switch is actuated, so you can immediately see which functions are in operation. A long-lasting LED delivers efficient performance with minimal heat emission to prevent damage to your panel's wiring. Screw terminals make installation swift and straightforward without the need for specialist tools. This unit only weighs 0.011kg, so it doesn't add excess load to your setup. You'll find it on machine panels anywhere from airports to breweries.

Features & Benefits

• 12 to 30V AC/DC supply voltage makes it ideal for low-power applications
• 6kV AC surge protection prevents hazardous overvoltage from damaging your equipment
• Reliable performance in temperatures between -25°C and +70°C, so suits harsh industrial settings
• Solid wire terminal capacity between 0.75 and 2.5mm² for versatility

Does this device have an IP rating?

Yes. This light block has an IP20 rating, which means it's touch-proof and resistant to objects greater than 12mm in size.

Does this unit offer a long lifespan?

Yes. This assembly delivers an electrical lifespan of 100,000 hours, so it's an ideal option for long-term performance.

Note

Eaton formerly known as Moeller

Datasheet

Instruction Sheet - RMQ-Titan

Catalogue - Pilot Devices
