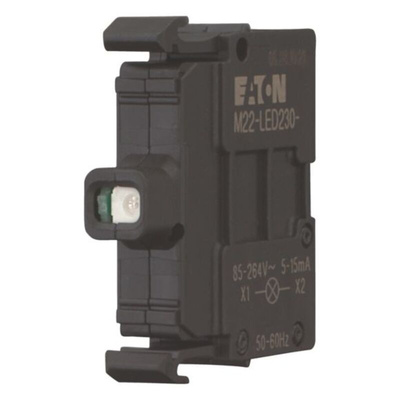

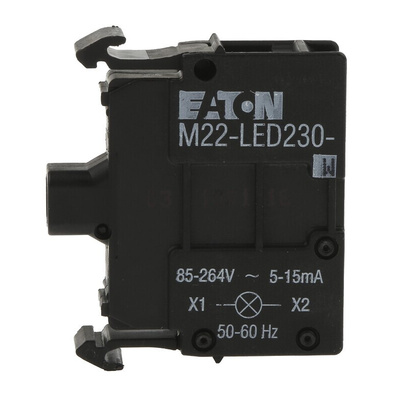

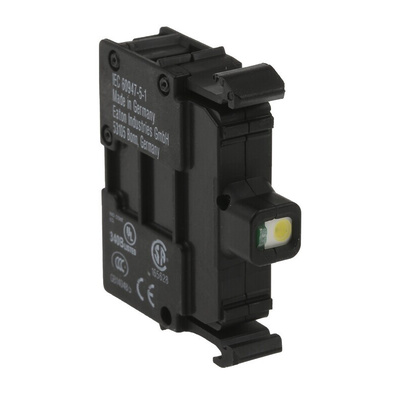

216563 M22-LED230-W, Eaton M22 Series Light Block, 85 → 264V ac, Световой блок

Eaton Light Block, LED Status Indicator, 15mA Current Rating - M22Series - 216563 M22-LED230-W

Boost safety in your control and automation processes with this light block from Eaton. You can pair it with a contact block (such as 399-3567) and push button (such as 399-2946) from the M22 series when you're putting together a customised assembly for your setup. The light block has a white LED to alert operators of the machine or process status in manufacturing and electronics environments.

Features & Benefits

• Wide operating temperature range between -40°C and +80°C when closed for use in extreme conditions
• IP20-rated for robust protection against accidental touch and objects larger than 12mm
• Screw terminals and front fixing for simple installation
• Modular design and compatibility with other M22 parts to save space
• Mechanical shock resistance of up to 30g protects against light impacts

Where is the light from the block emitted?

The block emits light via an integrated LED. When housed inside a push button unit, the light shines through, illuminating the button head to indicate the on/off status of the equipment.

Is a fixing collar included?

No, this is part of the compatible contact block unit (399-3567).

Note

Eaton formerly known as Moeller

M22-LED230-W Datasheet

Brochure - Pilot Devices

Instruction Sheet - M22 Series
