216537 M22-I2, Eaton Grey Plastic M22 Push Button Enclosure - 2 Hole 22mm Diameter, Корпус

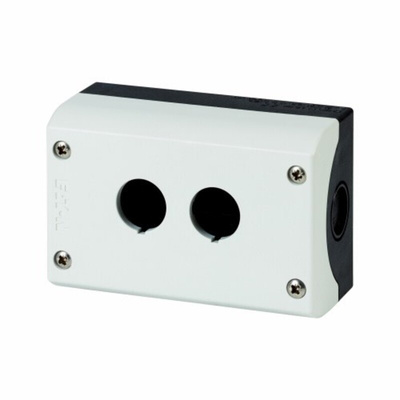

Eaton Push Button Enclosure, 2 Mounting Locations, 120mm Width - M22 Series - 216537 M22-I2

Need to protect the controls for your commercial and industrial machinery? Choose this push button enclosure from Eaton. It carries an IP69K rating, indicating complete protection against dust and high-temperature, high-pressure water jets. This makes it suitable for use in hygienic areas that need frequent washdowns. The unit supports two push buttons, allowing you to manage multiple device functions from the same unit. As the plastic housing is resistant to wear and impact, this is a suitable option for use in heavy-duty applications, such as food processing and vehicle maintenance.

Features & Benefits

• Compact dimensions of 80 (H) x 120 (W) x 56mm (D) to add minimal bulk to your setup
• Supplied with premade cutouts for quick assembly
• Standard cutout diameter of 22.5mm for compatibility with common push button models
• Broad operating temperature range between -25°C and +70°C for use in harsh environments

How do I install a push button inside this enclosure?

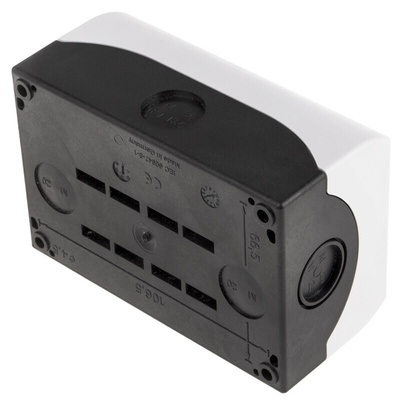

You can connect a switch using the cable entries at the rear, on the top or on the sides, so installation is flexible.

Note

Eaton formerly known as Moeller

Enclosures featured come with 22mm holes unless otherwise stated.

RMQ-Titan Pilot Devices

M22-I2 Datasheet

Instruction Sheet - 216537 M22-I2
