216540 M22-I6, Eaton Grey Plastic RMQ Titan M22 Push Button Enclosure - 6 Hole 22mm Diameter, Корпус

Eaton Push Button Enclosure, Surface Mounting, IP66 Rating - RMQ Titan Series - 216540 M22-I6

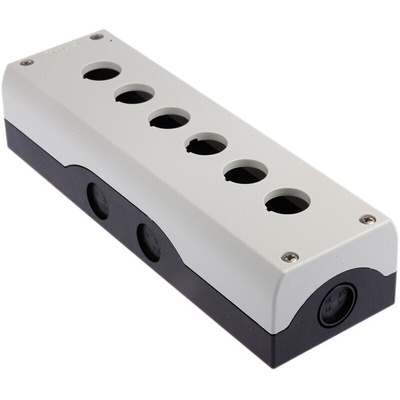

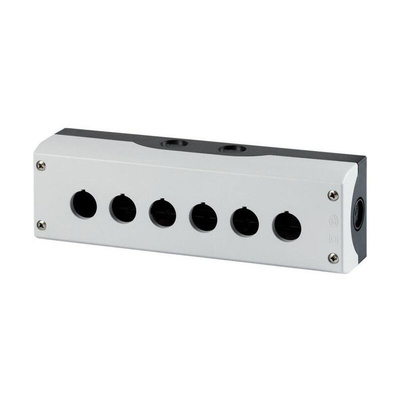

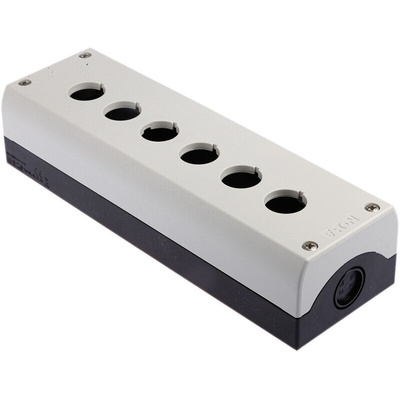

Keep your control devices safe and sound with this push button enclosure from Eaton. The station's IP66 rating shows it shuts out dust and high-pressure water jets to effectively protect sensitive gear in harsh conditions. Six ports are on hand to support complex setups. Installation is done in no time, as the unit simply screws onto a flat surface or panel. Thanks to the insulating plastic body, your risk of exposure to an electric shock is minimal. Use enclosures like this one in automated assembly lines and the food production industry.

Features & Benefits

• Holds industry-standard 22mm push buttons for wide controller compatibility
• Slim dimensions of 252 (H) x 56 (D) x 80mm (W) make it easy to find a spot for installation
• Pre-cut ports minimise preparation time
• Broad operating temperature range between -25°C and +70°C to protect controls in demanding temperatures

Does this enclosure come with cable knockouts?

Yes, this product has M20 and M25 threaded knockouts, so running connections into the unit is no issue.

How do I open this station?

It comes with a screw-on cover that opens with just a screwdriver to give you easy access to your components.

Note

Eaton formerly known as Moeller

Enclosures featured come with 22mm holes unless otherwise stated.

RMQ-Titan Pilot Devices

M22-I6 Datasheet

Instruction Sheet - 216540 M22-I6
