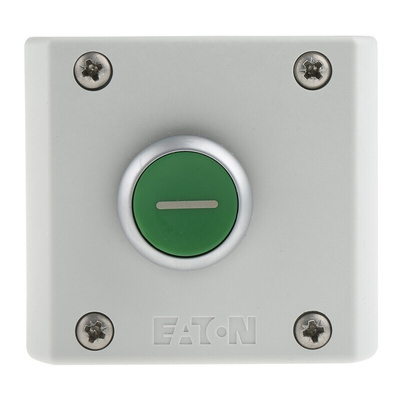

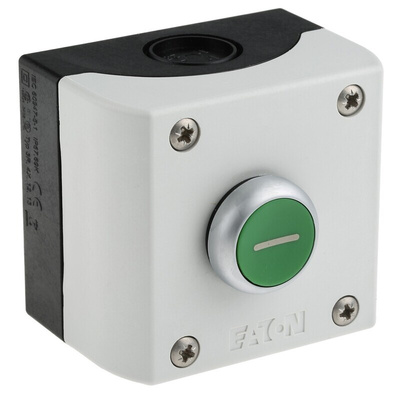

216522 M22-D-G-X1/KC11/I, Eaton Momentary Enclosed Push Button - SPDT, Plastic, 1 Cutouts, Green, I, IP69K

Eaton Push Button Control Station - M22 Series

Forming part of Eaton's RMQ Titan range of push buttons and control stations, the M22 control station complete unit provides a solution for control circuit devices within a multitude of applications, but more specifically machines and panel building. These control stations are a complete unit including enclosure and push button actuator.

Typical Applications

Designed for electrical automation and control environments, control station switches are commonly found in push button stations where users may be next to a machine or sitting at a control desk, within suspended operator panels or in a control panel. Suitable for a wide range of stop-start and electrical safety applications including factory conveyor belts, escalators and control panels.

Features and Benefits

• Snap fitting modular range of 22.5mm control devices
• Up to six clip-together contact elements per actuator
• Stayput actuators convert with a simple adaptor to spring return
• Flush, surface or rear mounted
• Mechanical lifespan of up to 100,000 operations
• Operating temperature of -25 to +70°C

IP rating explanation

• IP69K (rated as ’’complete assurance ’’provides the highest protection rating on the scale)
• IP67 (rated as "dust tight" and protected against immersion)

What is the difference between a push button station for emergency stop and a general-purpose control station?

A general-purpose push button switch is used for controls, e.g., starting machine operation or simply to switch modes. However, a push button switch for emergency stop is mainly used as a safety measure to stop hazardous events.

Eaton RMQ Titan Momentary Push-Button Control Station, NO/NC - RMQ-Titan / M22 Series - M22-D-G-X1/KC11/I

Eaton's push-button control station is a complete unit including an enclosure and push-button actuator. It offers a simple solution for control panels and machinery operation. The unit features momentary push-button actuation, meaning you must keep the button depressed to perform a function. It's simple and intuitive to use and is coloured green for immediate identification. Designed for electrical automation and control environments, this button is suitable for a wide range of stop-start and electrical safety applications including factory conveyor belts, escalators and control panels.

• Flexible component with a choice of either AC (230 V) or DC (400 V) voltage supply
• Features the highest possible ingress protection rating of IP69K, meaning it's completely dust-tight and water-tight
• Hard-wearing titanium bezel for longer service life
• Can be set up in either a normally open or normally closed configuration (NO/NC) for versatile use

What's the operating temperature range of this control station?

All push buttons in Eaton's M22 series have an operating temperature range of -25°C to +70°C, so they can withstand extreme conditions.

What protection does IP69K offer?

IP69K is the highest ingress protection rating. It means this unit can cope with high-pressure jets, wash-downs and steam cleaning.
