216521 M22-D-R-X0/KC11/I, Eaton Momentary Enclosed Push Button - SPDT, Plastic, 1 Cutouts, Red, O, IP69K

Eaton Enclosed Push Button, Screw Terminals, 22mm Cutout Diameter - RMQ-Titan Series - 216521 M22-D-R-X0/KC11/I

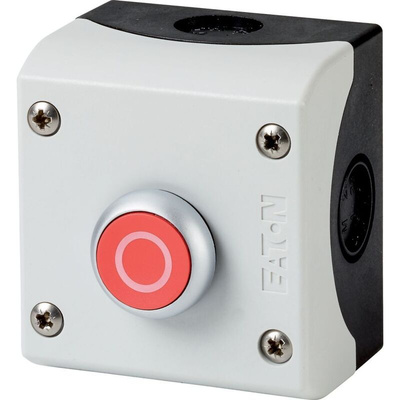

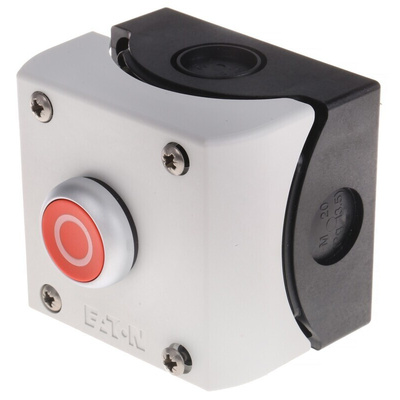

Looking for a robust switching device? Count on this Eaton enclosed push button. As a momentary model, the unit's contacts only close while pressed, so you get precise machine control. A spring-return mechanism means the actuator quickly releases to stop processes in a snap. Assembling the enclosure is a breeze as the two parts slot together and are secured with four Phillips screws. There's no need to worry about corrosion, as an IP69K rating shows it shuts out the dust and hot, high-pressure water jets you'd expect in settings that need steam cleaning. Look for push buttons like this in material handling and fluid management systems.

Features & Benefits

• Hard-wearing plastic enclosure for effective impact resistance
• Completes up to 1,800 cycles an hour, meeting intense switching demands

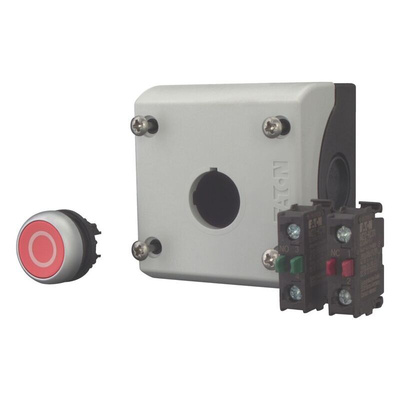

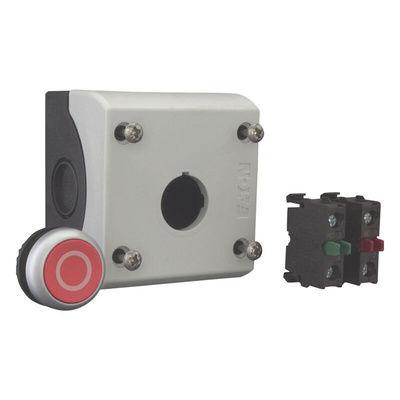

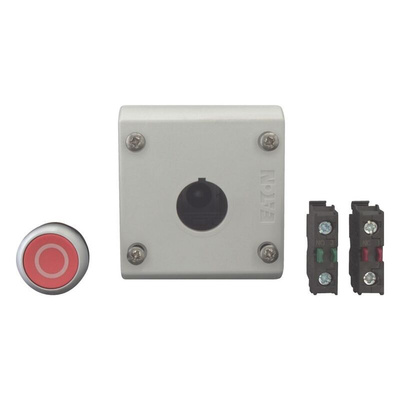

• Supplied with actuator and contact blocks to let you get right to assembly
• Bright red push button head stands out on busy control panels
• Screw terminals secure conductors against disruptive movement

Does this unit come with knockouts for my electrical connections?

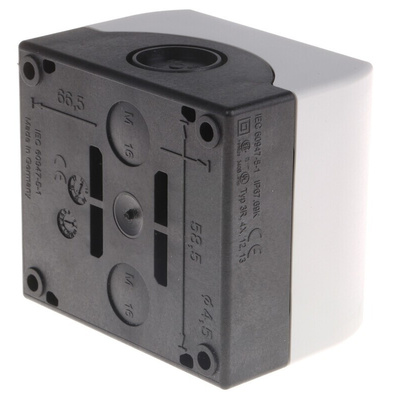

Yes, this enclosure has five pre-marked knockouts on its rear and side faces, which cuts down on preparation work and makes set-up speedy.

Note

Eaton formerly known as Moeller

Approvals

UL; CSA; IEC/EN60947

IP66 Stop enclosed pushbutton station

M22-D-R-X0-KC11-I-Datasheet

Instruction Sheet - 216521 M22-D-R-X0/KC11/I
