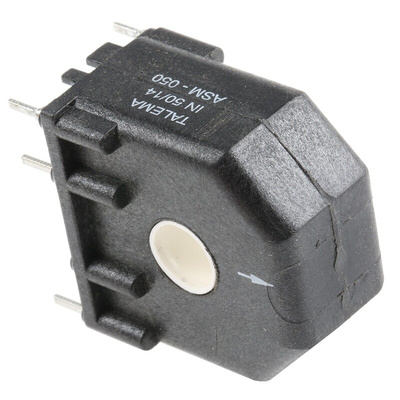

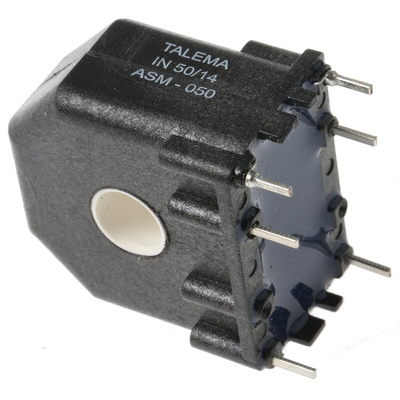

ASM-050, Nuvotem Talema ASM Series Current Transformer, 50A Input, 50:1, Трансформатор тока

Current Sense, Toroidal - 50/60Hz

From Nuvotem Talema, these ASM series toroidal current sensors are fully encapsulated for optimal mounting to printed circuit boards, and are commonly used to detect branch circuit overload, load drop or shut down. Accurate and easy to use, the ASM Series current sensors operate as the sealed secondary of a current transformer while the conductor carrying the current to be measured functions as a one turn primary.

• Measurement accuracy can be improved by increasing the number of primary turns
• Output voltage tolerance is ±10%
• 50/60Hz bandwidth
• The secondary rms nominal current quoted for these transformers is measured at I input max.
• Body Material: Plastic (UL94 V0)
• Current Type sensed: AC
• Isolation Test Voltage kVac: 2.5

Features and Benefits:

Low Cost Current Sense Transformers

ASM Series Current Sense Inductors and Transformers Data Sheet
