GV2ME21, Schneider Electric 17 → 21 A TeSys Motor Protection Circuit Breaker, 690 V, Автоматический выключатель

Schneider Electric Motor Protection Circuit Breaker - GV2M Series

Protecting your motors from faults such as an overload of high voltage, short circuits, or relay shutdowns is vital in an age where any downtime can be detrimental to a business and its operations. Schneider Electric has built a reliable, robust series known as the GV2M series of Motor Protection Circuit Breaker to act as an intermediary between your devices, protecting vital equipment in the event of unforeseen incidents.

Features & Benefits

• Flexibility in locking the N/C position via the use of 3 padlocks is available
• Motor Protection Switch Push button style control type with easily distinguishable button, coloured in re.
• 100,000 cycles of electrical/mechanical durability
• Light-weight, robust and compact in its design, the GV2M series is perfect for tight spaces
• If used on its own, the MPCB has manual or local control. Combined with a contactor and you have access to an automatic & remote control
• Spring terminal & Screw clamping is available
Protection ratings & Safety features:
• Live parts are inaccessible to any direct contact from external users, improving the safety of operations around the MPCB
• Thermal-magnetic trip technology to help protect the unit built into the circuit-breaker
• EN 60204, IEC 60947-1, IEC 60947-2, IEC 60947-4-1 standard ratings (full list in the datasheet)
• Certified ATEX, BV, CCC. CSA and more (full list in the datasheet)
• IP20 degree of protection, conforming to IEC 60529 - further protection against solid objects e.g. a person's fingers.
• IK04 degree of protection - impacts of up to 0.5 Joules to the device offer limited protection

Applications

• Electrical Motor Control and protection
• Easily assembled into any configuration by screw or clip-fixing onto mounting rails.

How do you select the right Motor Protection Circuit Breaker?

MPCBs are more critical now than ever. Most infrastructure now relies on a motor behind the scenes to power critical uninterruptible systems such as heating, ventilation, cooling all of which we take for granted. These systems are vital in ensuring business productivity and therefore must be protected against overcurrent's, thermal overloads and much more.

To select the right MPCB, consider the systems you and your business rely upon. Checking the features and benefits of each MPCB will prove invaluable when deciding what critical infrastructure you wish to protect.

Note

For use with the TeSys contactor, up to 15kW – for typical contactor see (stock no. 394-9813)

Approvals

UL Listed, CSA Certified

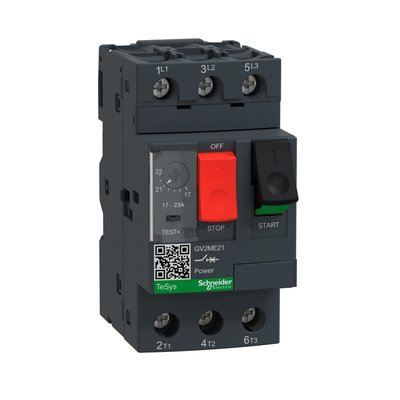

Schneider Electric Motor Protection Circuit Breaker, 17 to 23A Thermal Protection Adjustment Range, 690V AC Voltage Rating - TeSys Deca Series - GV2ME21

Want to stop short circuits and current overloads tripping up your system's productivity? Install this motor protection circuit breaker from Schneider Electric to cut faults off at the pass. The device trips a power feed when glitches occur, which prevents damage and boosts efficiency. Thanks to its multi-pole design, you can run up to three circuits through the unit to streamline your setup. Wiring is fuss-free, as you just prepare the conductor, insert it into the terminal and tighten the screw to achieve a secure connection.

Features & Benefits

• Rated supply voltage of 690V AC gives it the muscle to safeguard industrial applications
• Works reliably in temperatures between -20°C and +60°C
• Electrical lifespan of 100,000 cycles for consistent long-term performance
• Stop and start buttons are clearly marked for easy use

Applications

• Automated control panels
• MRI equipment
• Rail infrastructure
• Aviation engineering

Can I safely touch this motor protection circuit breaker when it's on?

Yes, the housing carries an IP20 rating, which means it keeps solid objects larger than 12.5mm out.

Can I adjust the current settings to suit my application?

Yes, you can quickly set a thermal protection value between 17 and 23A by adjusting the front-facing dial with a screwdriver.

CSA 081630
