LADS2, Schneider Electric TeSys Pneumatic Timer for use with TeSys CAD Contactor, TeSys LC1D Contactor, TeSys LC1F Contactor, Таймер

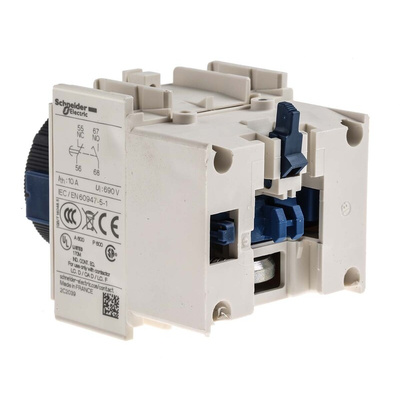

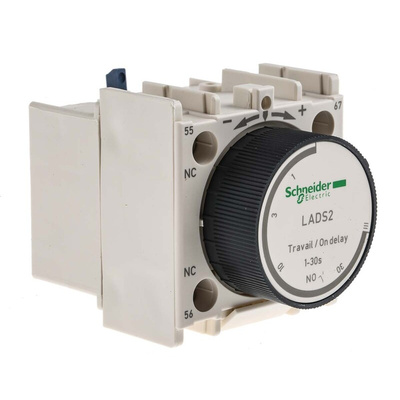

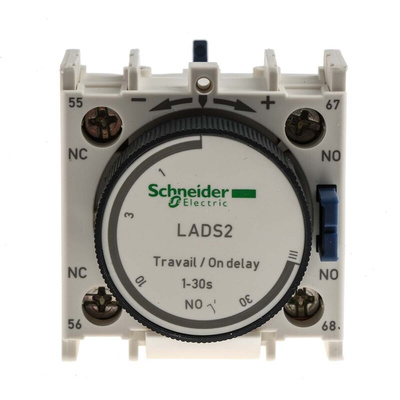

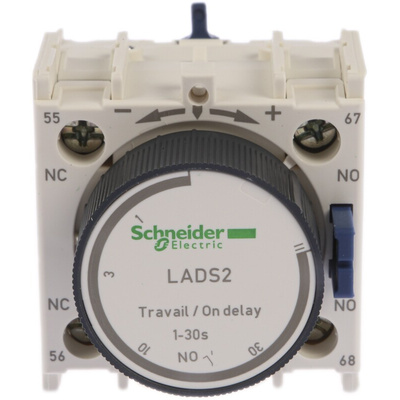

Schneider Electric TeSys Time Delay Auxiliary Contact Block, 10A, 690V AC - D Series - LADS2

Use this time delay contact block from Schneider Electric's TeSys range to control cycle times. It operates in conjunction with primary switching equipment from the same range. The insulated unit is protected against voltage surges for improved reliability and user safety. High mechanical durability means it delivers an extended service life and allows the device to withstand harsh industrial conditions. This contactor timer features a plug-and-play mounting style, so you can quickly and simply extend the capacity of your main contactor.

Features & Benefits

• Durable screw clamp terminals hold wires firmly in place, reducing maintenance time
• Wide time delay range of 1 to 30 seconds for enhanced application versatility
• IP20 (ingress protection) rated enclosure that's touch-proof and protected from objects larger than 12mm
• Wide operating temperature range of -40°C to +70°C for safe use in demanding environments

Applications

• Textile and printing industries
• Food and beverage industry
• Quarries and shipyards

Is this an environmentally-friendly product?

Yes, this contactor timer is environmentally-friendly, thanks to a material composition that's fully recyclable and recoverable. It's also free of heavy metals for improved health and safety.
