LC1D09F7, Schneider Electric LC1D Series Contactor, 110 V ac Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac, Контактор

Schneider Electric LC1D TeSys D Contactors

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Bidirectional peak limiting diode suppressor to protect the coil
• Easily installed accessories
• Flexible control circuit to suit a wide range of applications

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

• AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.


• AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action
• Front mount dust tight auxiliary contact blocks
• Pneumatic time delay blocks
• Transient voltage surge suppressors
• Interface modules and electronic timers
• Mechanical latching blocks

Is the TeSys D range a double break pole type contactor?

Yes the Tesys D range uses linear translation movement that provides double breaking of the poles.

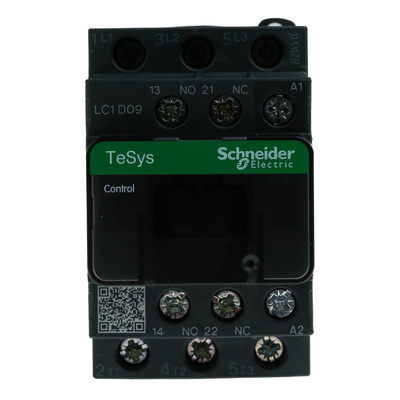

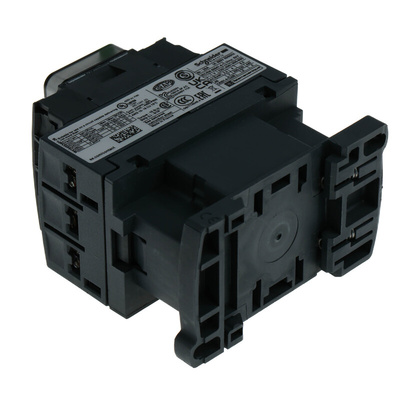

Schneider Electric Contactor, For AC Circuits, Screw Clamp Terminals - TeSys Deca Series - LC1D09F7

Get your motor running with this contactor from Schneider Electric's TeSys range. It's specifically designed to reliably switch high current load devices, thanks to the rapid operation of its contacts. This helps to cut the risk of electrical arcing, which allows the unit to stop heavy motor currents without damaging equipment. Screw clamp terminals offer peace of mind in demanding operating conditions, as they ensure conductors are held firmly in place. These terminals are also straightforward to wire using just a screwdriver. Simply click this contactor onto a DIN rail or mount it onto a panel for snappy installation.

Features & Benefits

• End-of-life optimised to reduce the amount of waste sent to landfill
• Comes with a protective cover, which helps to keep it damage-free
• Suitable for international use, as it has both Hp and Kw motor ratings
• IP20-rated front face is protected against objects larger than 12mm, including your fingers

Applications

• HVAC equipment
• Cold-storage facilities
• Automotive manufacturing
• Lighting systems

Is this contactor flame-retardant?

Yes, to minimise the risk of fire spreading, the component is flame-retardant. This means it only burns for a brief period.
