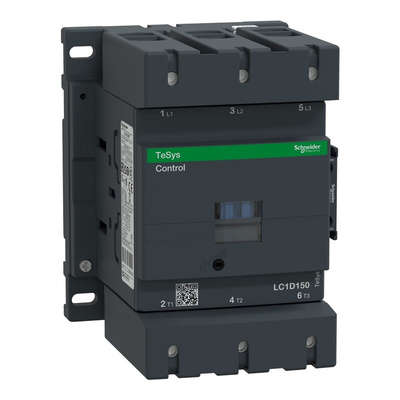

LC1D150F7, Schneider Electric LC1D Series Contactor, 110 V ac Coil, 3-Pole, 150 A, 80 kW, 3NO, 1 kV ac, Контактор

Schneider Electric Contactor, 2.5kg Weight, 2 Auxiliary Contacts - TeSys Series - LC1D150F7

Rev up your motor and get work started with this contactor from Schneider Electric. It's ideal for switching demanding industrial equipment on and off, thanks to its 150A current rating. A 1kV AC breaking capacity means it handles hazardous over-voltages without breaking a sweat. DIN rail mounting or screw-fixing to a plate means you can power through installation in two ticks. Rest assured that handling this contactor doesn't pose a health risk, as it's free of mercury and PVC.

Features & Benefits

• Operating life of eight million cycles for longevity
• 80kW power rating to handle demanding applications
• Burning subsides 60 seconds or less, for safety in the event of a fire
• IP20-rated terminals are touch-proof and resistant to objects bigger than 12mm, like wires and tools
• Compact dimensions of 158 (L) x 132 (D) x 120mm (W) save space in your setup

Applications

• Industrial process and control
• Manufacturing facilities
• Heavy industry

Can I use this component in harsh industrial conditions?

Yes. This contactor has a broad operating temperature range between -5°C and +60°C, so it withstands use in demanding workplaces.

Approvals

LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.

UL E164862

CSA 43364
