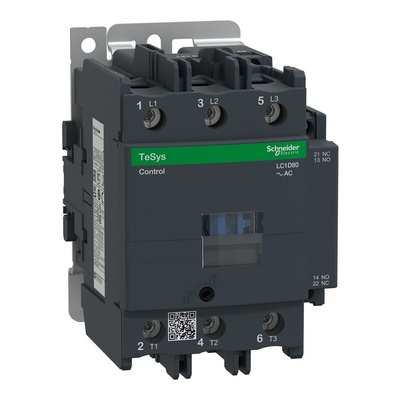

LC1D80F7, Schneider Electric LC1D Series Contactor, 110 V ac Coil, 3-Pole, 80 A, 45 kW, 3NO, 1 kV ac, Контактор

Schneider Electric Contactor, 3 Pole, 1kV AC Contact Voltage Rating - TeSys series - LC1D80F7

Use this contactor from Schneider Electric's TeSys range to support the sound operation of your electrical circuits. It's a type of relay that meets the demands of higher current capacities in control systems and can be used to support motor starters. A secure screw connection makes installation quick and straightforward. Built-in auxiliary contacts improve the switching capability of the component for improved reliability and performance. Thanks to an IP20 rating, you can be sure the unit is touch-proof to prevent electric shocks and increase safety.

Features & Benefits

• Flexible mounting options for panel and DIN rail assemblies
• Bidirectional peak limiting diode suppressors for added coil protection
• Quick 20 to 35ms closing and 6 to 20ms opening of contacts for heavy-duty installations

Applications

• Electric motors
• Lighting installations
• HVAC systems
• Compressors

What's the difference between AC1 and AC3 contactors?

AC1 contactors for general-purpose resistive loads with a power factor of at least 0.95 such as heating devices. AC3 contactors like this one are designed for high-inductive, squirrel cage motor switching where breaking occurs while the motor is running. These are devices such as mixers and bucker elevators.

Approvals

LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.

UL E164862

CSA 43364
